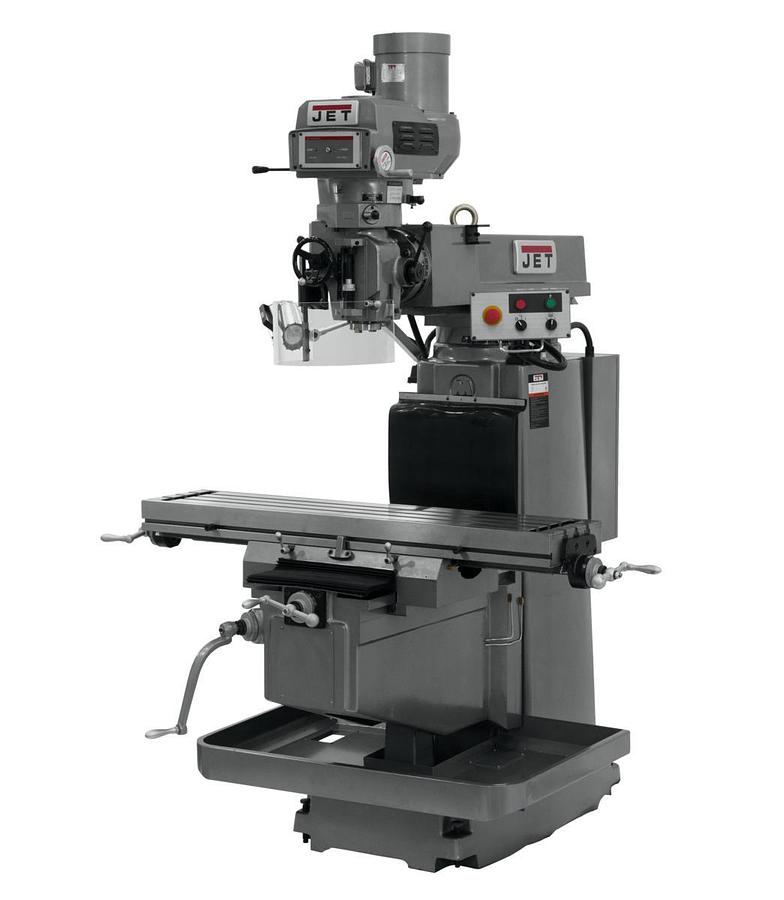

JTM-1254VS Variable Speed Vertical Mill Machine 230/460V, 3Ph
Description
JTM-1254VS MILL, 12" x 54" Table, NT40 Taper, 5HP, 230/460V, 3Ph
The JET JTM-1254RVS and JTM-1254VS combine durability, strength and precision engineering, resulting in 12” x 54” Variable Speed Vertical Milling Machines that turn out high quality components. Designed for ease of use, Jet Mills provide ongoing automatic lubrication and quick nut spindle feed along with the JET exclusive new casting, providing the end-user with an easier solution to leveling the machine without raising it up off the floor. These heavy-duty mills are offered in both R-8 & NT-40 Spindles with all the features you've come to expect backed by the industry-leading JET Two Year Warranty with products CSA/CUS Certified.
Specifications
| Manufacturer | Jettools |
| Model | JTM-1254VS |
| Condition | New |
| Stock Number | JT9-690025 |
| Distance Spindle to Column (Max.) (In.) | 27-3/4 |
| Max Distance Spindle to Table (In.) | 23 |
| Motor (HP) | 5HP, 230/460V, 3Ph |
| Overall Dimensions (L x W x H) (In.) | 92-1/8 x 79-7/8 x 104-1/4 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 4-1/8 |
| Quill Down Feed Rates (IPR) | .0015–.003–.008 |
| Range of Spindle Speeds (RPM) | 80 - 3,800 |
| Saddle Width (In.) | 25-5/8 |
| Spindle Taper (In. x TPI) | NST #40 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed NT40 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/3 |
| Table Longitudinal Travel With Powerfeed (In.) | 33-7/8 |
| Table Size (L x W) (In.) | 12 x 54 |
| Travel of Knee (In.) | 19-1/4 |
| Travel of Ram (In.) | 25 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 925 |
| Gross Weight | 3969.0 |
| Net weight | 3260.0 |
