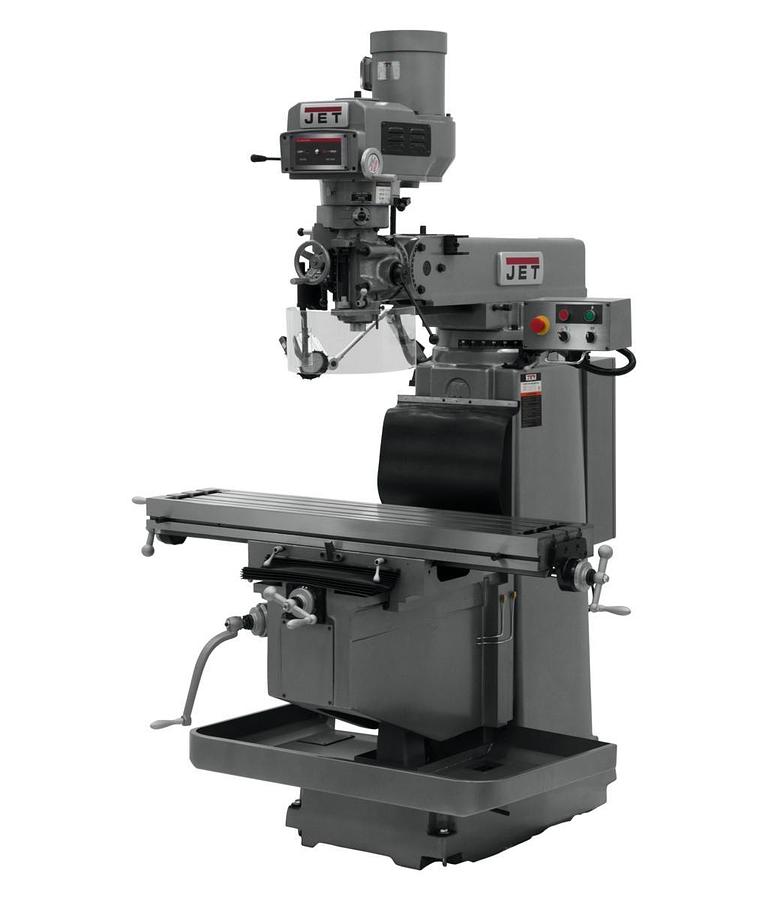

JTM-1254RVS Variable Speed Vertical Mill Machine 230/460V, 3Ph

or

JTM-1254RVS MILL, 12" x 54" Table, R-8 Taper, 5HP, 230/460V , 3Ph

This JET® 12" x 54" Vertical Metal Mill features the rugged stability of Meehanite® Castings to ensure that every job is up to your standards.

Adjustable gibs throughout

Dual locks on all moveable surfaces

Heavy-duty spindle brake

Precision bored and honed milling head

Precision hardened and ground ways and table

Spindle Brake for rapid stopping of the spindle

Three Precision ground t-slots

Three-stage power downfeed with automatic stop

Two 115V outlets on electrical box for Powerfeeds only

Manufacturer	Jettools
Model	JTM-1254RVS
Condition	New
Stock Number	JT9-690020
Collet Capacity	1/8 - 1
Distance Spindle to Column (Max.) (In.)	27-3/4
Max Distance Spindle to Table (In.)	23
Motor (HP)	5HP, 230/460V, 3Ph
Overall Dimensions (L x W x H) (In.)	92-1/8 x 79-7/8 x 104-1/4
Prop 65	Cancer and Reproductive Harm
Quill Diameter (In.)	3-3/8
Quill Down Feed Rates (IPR)	.0015–.003–.006
Range of Spindle Speeds (RPM)	80 - 3,800
Saddle Width (In.)	25-5/8
Spindle Taper (In. x TPI)	R-8
Spindle Travel (In.)	5
Style (Type)	Variable Speed R8
T-Slot Centers (In.)	2-1/2
Table Cross Travel (In.)	15-1/3
Table Longitudinal Travel (In.)	33-7/8
Table Longitudinal Travel With Powerfeed (In.)	28-1/4
Table Size (L x W) (In.)	12 x 54
Travel of Knee (In.)	19-1/4
Travel of Ram (In.)	25
Warranty	2 Year
Work Table Weight Capacity (Lbs.)	925
Gross Weight	3969.0
Net weight	3260.0
