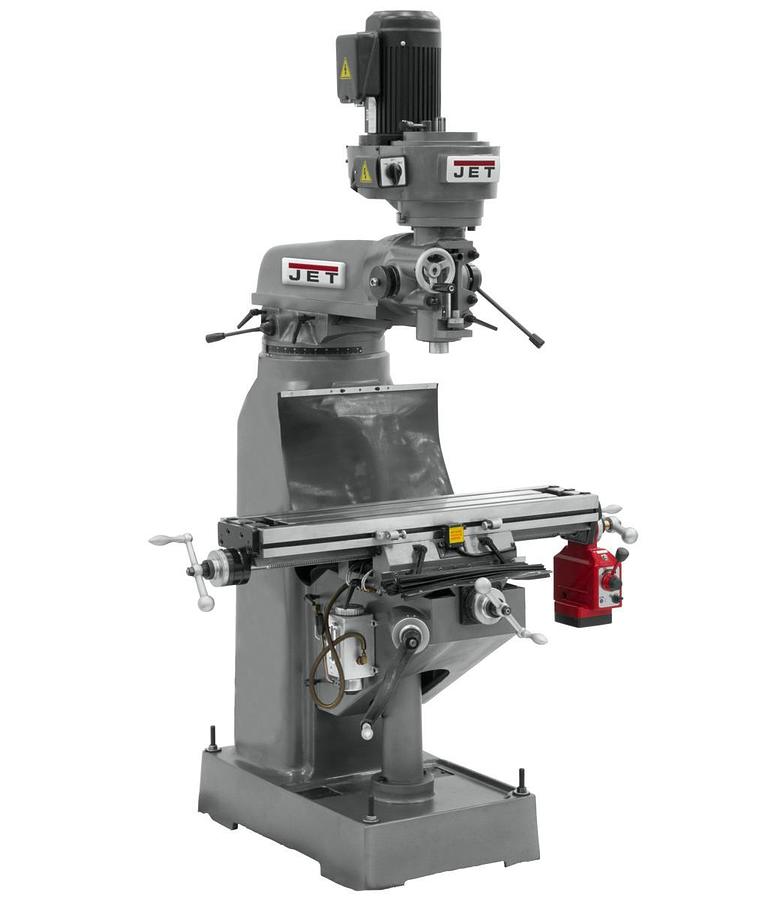

JTM-1 Step Pulley Milling Machine 230V 3Ph

or
Call (954)444-4004

Description

JTM-1 Mill, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V Only

The Jet JTM-1, 9"x42" Table, 16 Spindle Speeds, 2HP, 3Ph, 230V has a three-stage power down feed with automatic stop, high precision Class 7 spindle bearings and the rugged stability of Certified Meehanite® Castings to ensure that every job is up to your standards. The internally cooled spindle head prevents seizing and precision engineering ensures superior results with all the features you've come to expect, all backed by the industry leading JET Two Year Warranty.


  • Heavy duty splined motor drive
  • Internal coolant tank built into base for use with coolant system (Coolant pump not included)
  • Large Diameter quill is chromed
  • One shot lubrication system
  • Precision bored and honed milling head
  • Precision hardened and ground ways
  • Satin chrome finished dials
  • Tolerance test sheet included

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTM-1
    ConditionNew
    Stock NumberJT9-690082
    Collet Capacity1/8 - 7/8
    Distance Spindle to Column (Max.) (In.)19
    Max Distance Spindle to Table (In.)17-1/2
    Motor (HP)2 HP, 230V, 3Ph
    Number of Spindle Speeds16
    Overall Dimensions (L x W x H) (In.)57 x 64 x 82
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3-3/8
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Range of Spindle Speeds (RPM)80 - 5,440
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Style (Type)Step Pulley R8
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)12-1/2
    Table Longitudinal Travel (In.)23-7/8
    Table Longitudinal Travel With Powerfeed (In.)20-2/7
    Table Size (L x W) (In.)9 x 42
    Travel of Knee (In.)14-1/2
    Travel of Ram (In.)13-3/8
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)550
    Gross Weight2200.0
    Net weight2056.0
