BDB-1340A With Taper Attachment
Description
BDB-1340A With Taper Attachment

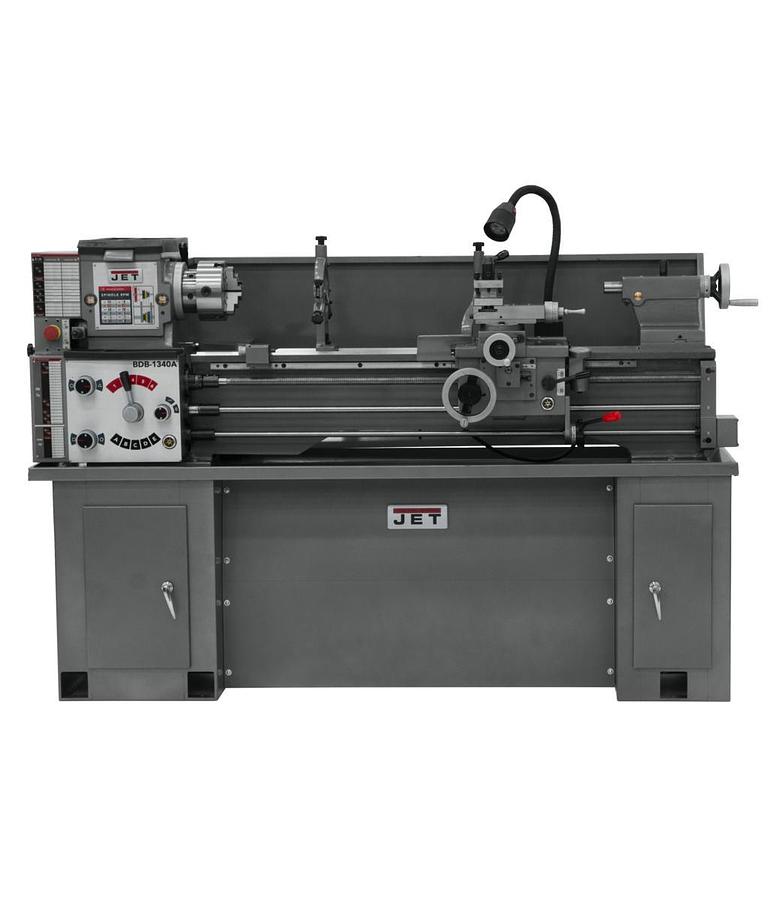

JET Belt Drive Bench Lathes feature an enclosed gearbox with helical cut gears for noise reduction and smooth operation. The full-length splash guard on all sizes prevents hot chips and fluid from contaminating the work area and the quick-change gearbox allows for fast and easy gear changes for metric threading. The optional bench shown in the image is compatible with JET Lathes and is available for purchase. Each JET Lathe comes loaded with features you’ve come to expect, all backed by the industry leading JET Two Year Warranty.
Specifications
| Manufacturer | Jettools |
| Model | BDB-1340A |
| Condition | New |
| Stock Number | JT9-321120 |
| Carriage Travel (In.) | 35 |
| Compound Slide Travel (In.) | 2-11/16 |
| Drive | Belt |
| Length of Gap (In.) | 8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Motor (HP) | 2 HP, 230V, 1Ph |
| Number of Inch Threads | 38.0000 |
| Number of Longitudinal and Cross Feed Rates | 38 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 71 x 32 x 45 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0006-0.013 |
| Range of Inch Threads (TPI) | 3-1/2 - 80 |
| Range of Longitudinal Feeds (IPR) | 0.0018-0.0374 |
| Range of Metric Threads | 0.45-10 |
| Range of Spindle Speeds (RPM) | 60 - 1,240 |
| Size | 13 x 40 |
| Spindle Bore (In.) | 1-3/8 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 (MT-3) |
| Steady Rest Capacity (In.) | 2-5/8 |
| Style (Type) | Bench |
| Swing Over Bed (In.) | 13 |
| Swing Over Cross Slide (In.) | 7-25/32 |
| Swing Through Gap (In.) | 18-3/4 |
| Tailstock Spindle Travel (In.) | 3-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7-3/8 |
| Gross Weight | 1275.0 |
| Net weight | 1275.0 |
