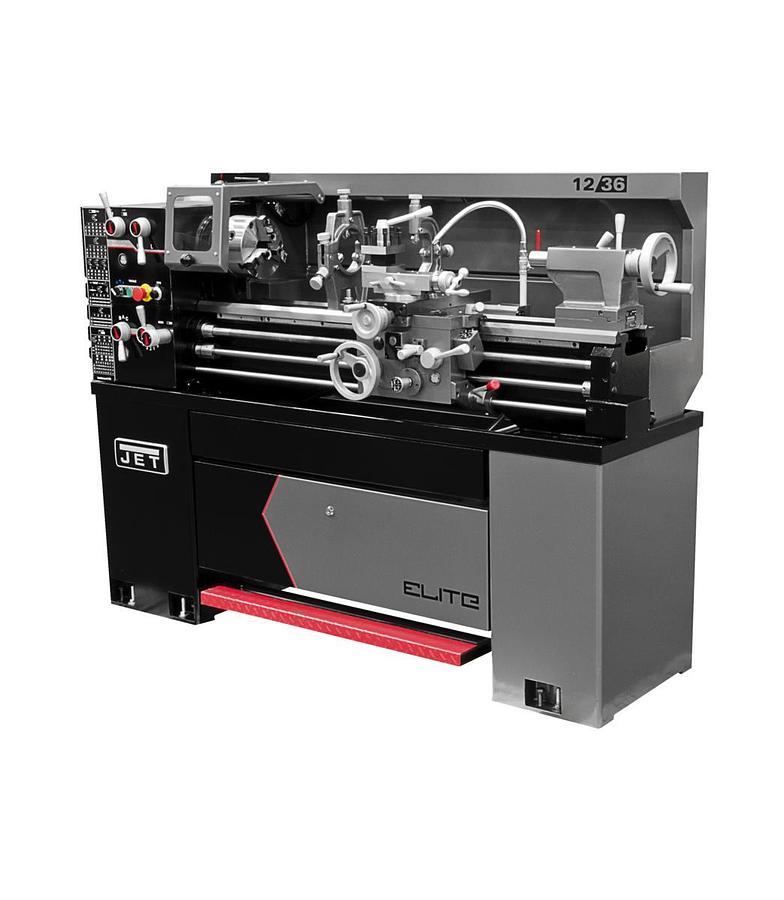

E-1236VS With ACU-RITE 303 DRO With Taper Attachment
Description
E-1236VS With ACU-RITE 303 DRO With Taper Attachment
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Specifications
| Manufacturer | Jettools |
| Model | E-1236VS |
| Condition | New |
| Stock Number | JT9-892312 |
| Compound Slide Travel (In.) | 3-1/2 |
| Drive | EVS |
| Length of Gap (In.) | 9-1/2 |
| Max Tool Size (In.) | 1/2 x 1/2 |
| Motor (HP) | 2HP, 230V,3ph |
| Number of Inch Threads | 34.0000 |
| Number of Longitudinal and Cross Feed Rates | 50 |
| Number of Metric Threads | 33.0000 |
| Overall Dimensions (L x W x H) (In.) | 71 x 30 x 60 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0005 - 0.015 |
| Range of Inch Threads (TPI) | 2 - 56 |
| Range of Longitudinal Feeds (IPR) | 0.0016 - 0.046 |
| Range of Metric Threads | 0.5 - 12 |
| Range of Spindle Speeds (RPM) | 0 - 2,000 |
| Size | 12 x 36 |
| Spindle Bore (In.) | 1-9/16 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 1/4 - 2-1/2 |
| Style (Type) | ELITE EVS |
| Swing Over Bed (In.) | 12 |
| Swing Over Cross Slide (In.) | 7-5/16 |
| Swing Through Gap (In.) | 17-1/2 |
| Tailstock Spindle Travel (In.) | 4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 3 Year Elite |
| Width of Bed (In.) | 7-1/2 |
| Gross Weight | 1477.0 |
| Net weight | 1213.0 |
