GHB-1236 Geared Head Bench Lathe with Newall DP700 in Jet Metalworking, Turning, Lathes

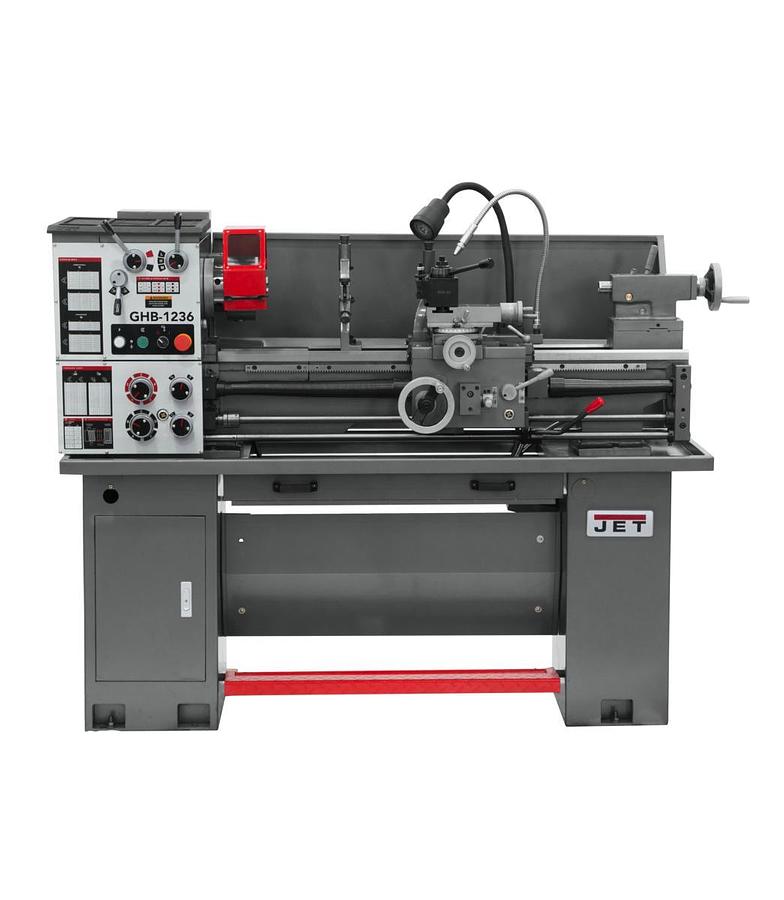

This new JET GHB-1236 Geared Head Bench Lathe is engineered to cut and taper with exacting accuracy. Positioned on a heavy-duty cast iron stand with a newly added built-in footbrake, the GHB-1236 features precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for ultimate working durability.
Specifications
| Manufacturer | Jettools |
| Model | GHB-1236 |
| Condition | New |
| Stock Number | JT9-323231 |
| Carriage Travel (In.) | 27-3/8 |
| Compound Slide Travel (In.) | 3 |
| Length of Gap (In.) | 8-3/4 |
| Max Tool Size (In.) | 3/4 x 3/4 |
| Motor (HP) | 2HP, 230V, Single Phase |
| Number of Inch Threads | 36.0000 |
| Number of Longitudinal and Cross Feed Rates | 48/36 |
| Number of Metric Threads | 32.0000 |
| Number of Spindle Speeds | 9 |
| Overall Dimensions (L x W x H) (In.) | 66.14 x 29.53 x 57.48 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0014 - 0.0116 |
| Range of Inch Threads (TPI) | 4-60 |
| Range of Longitudinal Feeds (IPR) | 0.0019 - 0.0472 |
| Range of Metric Threads | 0.4-7mm |
| Range of Spindle Speeds (RPM) | 75 - 1400 |
| Spindle Bore (In.) | 1.575 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 0.31-2.95 |
| Swing Over Bed (In.) | 12 |
| Swing Over Cross Slide (In.) | 7-1/2 |
| Swing Through Gap (In.) | 18 |
| Tailstock Spindle Travel (In.) | 3-1/2 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 7.12 |
| Gross Weight | 1297.0 |
| Net weight | 1139.0 |
