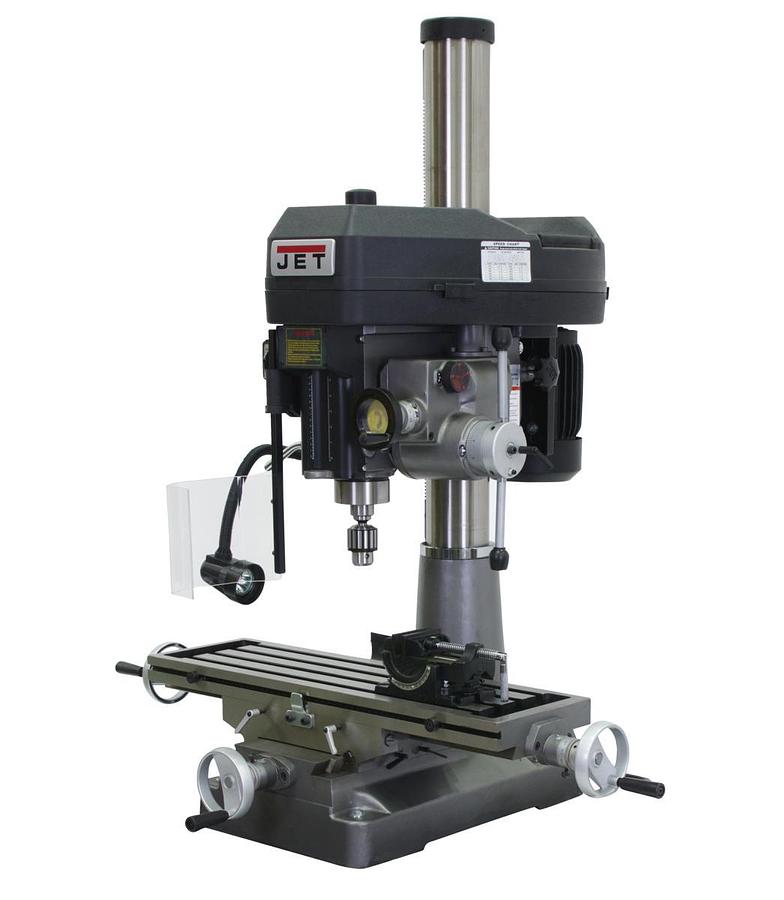

JMD-18PFN Mill/Drill With NEWALL DP700 DRO

Description

JMD-18PFN Mill/Drill With NEWALL DP700 DRO

Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.


  • 1/2” Drill chuck, chuck arbor
  • 360° head swivel
  • Adjustable carbide facemill
  • Base taper allows for easier clean up
  • Easy to read internal depth gauge
  • Heavy-duty power downfeed with manual feed (JMD-18PFN)
  • Mill Drill Stand, p/n 320020, shown in some images, is optional
  • One-piece cast iron column for added support
  • Positive quick-stop knob and easy to read internal depth gauge
  • UL Listed
  • Specifications

    ManufacturerJettools
    ModelJMD-18PFN
    ConditionNew
    Stock NumberJT9-350128
    Base Dimensions (In.)15-3/4 x 23-3/4
    Column Diameter (In.)4-1/2
    Face Mill Capacity (In.)3
    Max Distance Spindle to Table (In.)28
    Motor (HP)2 HP,115/230V, 1 Ph, Prewired 115V
    Number of Spindle Speeds12
    Overall Dimensions (L x W x H) (In.)47 x 40 x 51
    PowerfeedDownfeed
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3
    Quill Down Feed Rates (IPR)0.0047, 0.007, 0.001
    Range of Spindle Speeds (RPM)150 - 3,000
    Spindle Taper (In. x TPI)R-8
    Spindle Travel Auto (In.)4-1/4
    Spindle Travel (In.)5
    Swing (In.)15-7/8
    T-Slot Centers (In.)1-13/16
    T-Slots Number and Size (In.)4 and 5/8
    Table Longitudinal Travel (In.)20-1/2
    Table Size (L x W) (In.)9-1/2 x 31-3/4
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)400
    Gross Weight944.0
    Net weight944.0
