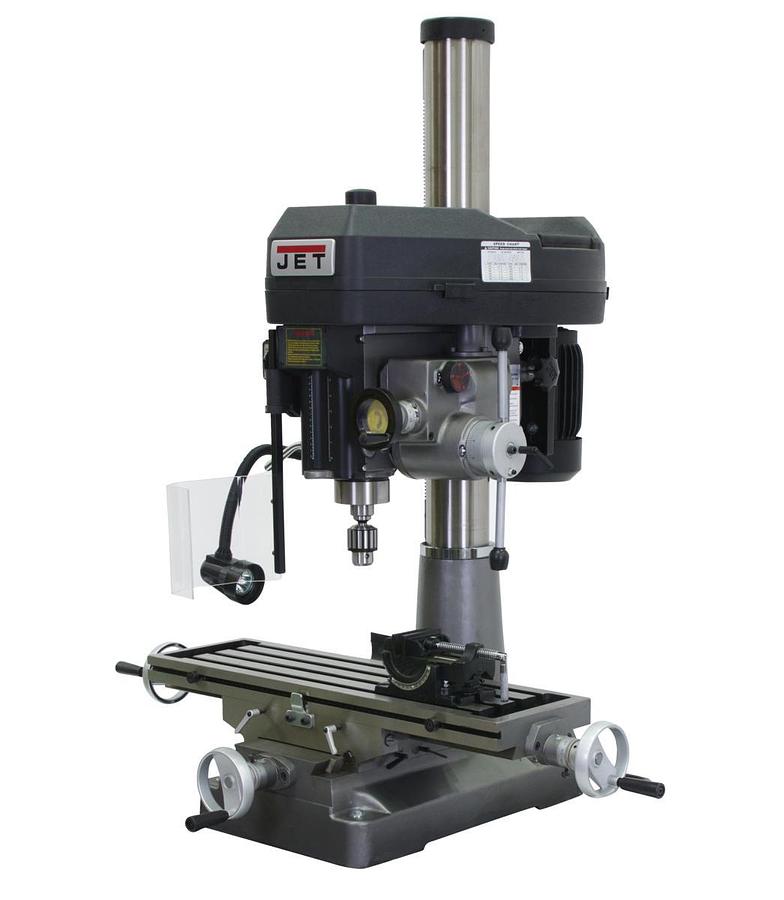

JMD-18PFN Mill/Drill With X-Axis Table Powerfeed
Description
JMD-18PFN Mill/Drill With X-Axis Table Powerfeed
Mill drills are a lighter alternative to a milling machine. These combine a belt driven drill press with the dual coordinate abilities of the milling machine's table for flexibility and efficiency. A locking collet prevents the cutting tool from falling away from the spindle when lateral forces are experienced against the bit. Although light in construction, the JMD Milling Drilling Machines possess the advantages of space-saving versatility, affordability and light machining capability.
Specifications
| Manufacturer | Jettools |
| Model | JMD-18PFN |
| Condition | New |
| Stock Number | JT9-350140 |
| Face Mill Capacity (In.) | 3 |
| Max Distance Spindle to Table (In.) | 28 |
| Motor (HP) | 2 HP,115/230V, 1 Ph, Prewired 115V |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 47 x 40 x 51 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3 |
| Quill Down Feed Rates (IPR) | 0.0047, 0.007, 0.001 |
| Range of Spindle Speeds (RPM) | 150 - 3,000 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| T-Slot Centers (In.) | 1-13/16 |
| T-Slots Number and Size (In.) | 4 and 5/8 |
| Table Longitudinal Travel (In.) | 20-1/2 |
| Table Size (L x W) (In.) | 9-1/2 x 31-3/4 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 400 |
| Gross Weight | 740.0 |
| Net weight | 649.0 |
