2-Ton Electric Chain Hoist 1-Phase 10' Lift | BLVS200-010

or
Call (954)444-4004

Description

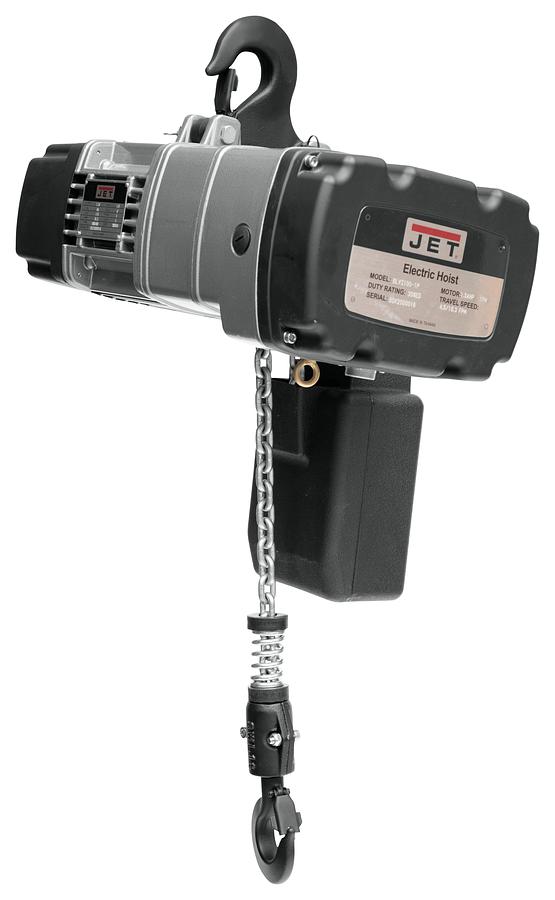

BLVS200-010 2Ton 10' Lift Electric Hoist,120V

JET Trademaster® Series Electric Hoists combines safety, portability, and durability to operate in all your industrial, construction, and transportation applications. With its market leading wireless controller and 2 in 1 mechanical brake and overload slip clutch, safety is most important. With the only DC Brushless motor in the market, 5 pocket chain sheave, and thermal overload protection, you have the durability you need to reduce maintenance costs. All of this with a lightweight compact housing that will get you into those tight areas while allowing you transport it from job to job in its molded carrying case. The Tradesmaster® Series comes in 1/8-Ton to 2-Ton capacities and standard lifts of 10 and 20ft (custom lifts up to 100ft are available).


  • Comes standard with Wireless Controller that can infinitely adjust speed from creep to 4ft/min with speed dial and max of 41ft/min in high speed
  • TAA Approved
  • Single phase 120V plug enables use in all areas and the Permanent Magnet Brushless Motor has the lowest required starting current available at just 10amp.
  • Overload protection using slip clutch system to protect hoist from loads over rated capacities
  • DC Brushless motor designed for a longer lifespan than normal Electric Hoist motors reducing maintenance costs
  • 30 / 7.5 Time ratings
  • Electronic controls have protections on them with 10 failure codes that are shown on wireless pendant for troubleshooting

    • Show All

    Specifications

    ManufacturerJettools
    ModelBLVS200-010
    ConditionNew
    Stock NumberJT9-104044
    Capacity (Lbs.)4400
    Duty Cycle (%)30
    Duty Cycle RatingH3
    Lift (Ft.)10
    Lifting Speed (FPM)0-2.2 / 9
    Load Capacity (Tons)2
    Max. Number of Starts (Per Hr.)180
    Max. On Time (Min. / Hr.)30/7.5
    Motor (HP)1.33HP, 110V 60Hz
    Motor PhaseSingle
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Gross Weight186.0
    Net weight127.0
    Headroom (In.)24-1/2
    Overall Width (In.)14-1/2
    Motor Current (Amps)15
    Headroom (in.)24-1/2
