JLP-075A-5, 3/4 Ton Lever Hoist, 5' Lift

or
Call (954)444-4004

Description

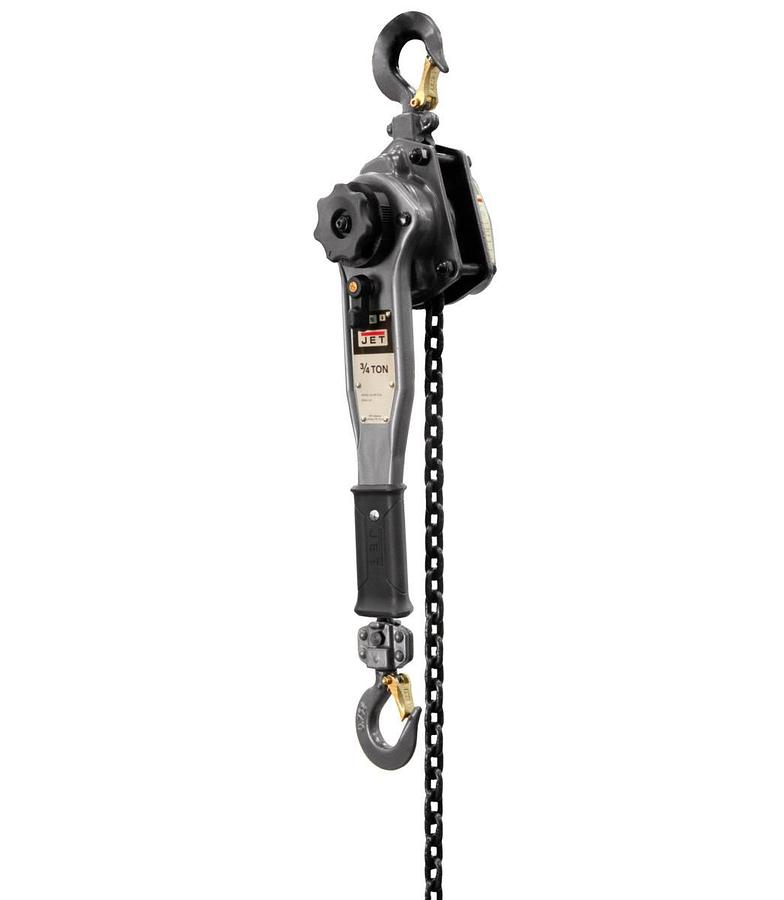

JLP-075A-5, 3/4 Ton Lever Hoist, 5' Lift

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.


  • Grade 80 black oxide coated load chain for added durability
  • Impact resistant all steel construction for added durability and protection
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
  • NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

    • Show All

    Specifications

    ManufacturerJettools
    ModelJLP-075A-5
    ConditionNew
    Stock NumberJT9-287300
    Headroom (in.)12-4/5
    Capacity (Lbs.)1650
    Lift (Ft.)5
    Load Capacity (Tons)3/4
    Load Chain Dimensions dia/mm)6 x 18
    Prop 65Cancer and Reproductive Harm
    WarrantyLifetime
    Lever Length (in.)11
    Lbs. of Pull to Lift Capacity31.0000
    Gross Weight15.25
    Net weight14.015
