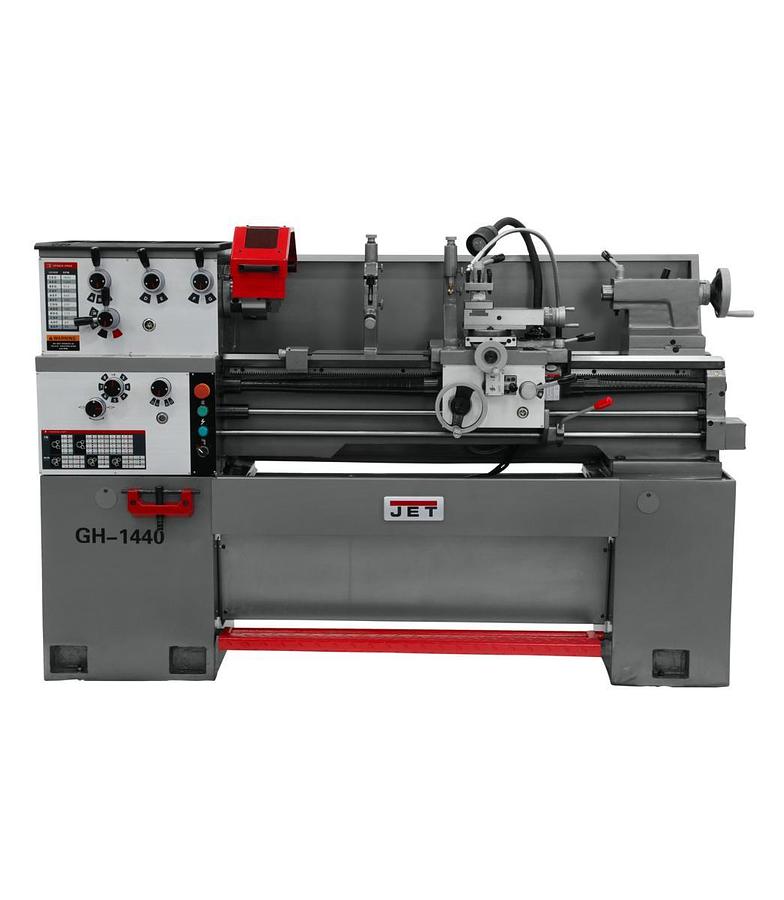

GH-1440-1 Lathe with Acu-Rite 203 DRO and Taper Attachment
Description
GH-1440-1 Lathe with Acu-Rite 203 DRO and Taper Attachment
The new JET GH-1440-1 and GH-1440-3 Geared Head Engine Lathes weigh over one ton and come equipped with precision induction hardened ground bed-ways, spindle roller bearings, and high-quality steel hardened gears in the headstock for the ultimate working durability. The enclosed gearbox design, standard coolant system, and lead screw cover provide a smooth and quiet operation while maintaining peak performance. The GH-1440-1 and GH-1440-3 also includes an emergency stop within easy reach of the operator as well as a patented Electronic Chuck Key Docking Station that prevents startup without the chuck key when safely docked.
Specifications
| Manufacturer | Jettools |
| Model | GH-1440-1 |
| Condition | New |
| Stock Number | JT9-323375 |
| Carriage Travel (In.) | 37-1/2 |
| Compound Slide Travel (In.) | 3-1/2 |
| Length of Gap (In.) | 9-3/8 |
| Max Tool Size (In.) | 5/8 x 5/8 |
| Motor (HP) | 3HP, 230V, 1PH |
| Number of Inch Threads | 40.0000 |
| Number of Longitudinal and Cross Feed Rates | 40 |
| Number of Metric Threads | 23.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 74-4/5 x 28 x 46 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0004 - 0.0103 |
| Range of Inch Threads (TPI) | 4-112 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45-7.5 |
| Range of Spindle Speeds (RPM) | 40-1800 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 3-1/2 |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 8-1/5 |
| Swing Through Gap (In.) | 20 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 2 Year |
| Width of Bed (In.) | 10-1/5 |
| Gross Weight | 2336.0 |
| Net weight | 2116.0 |
