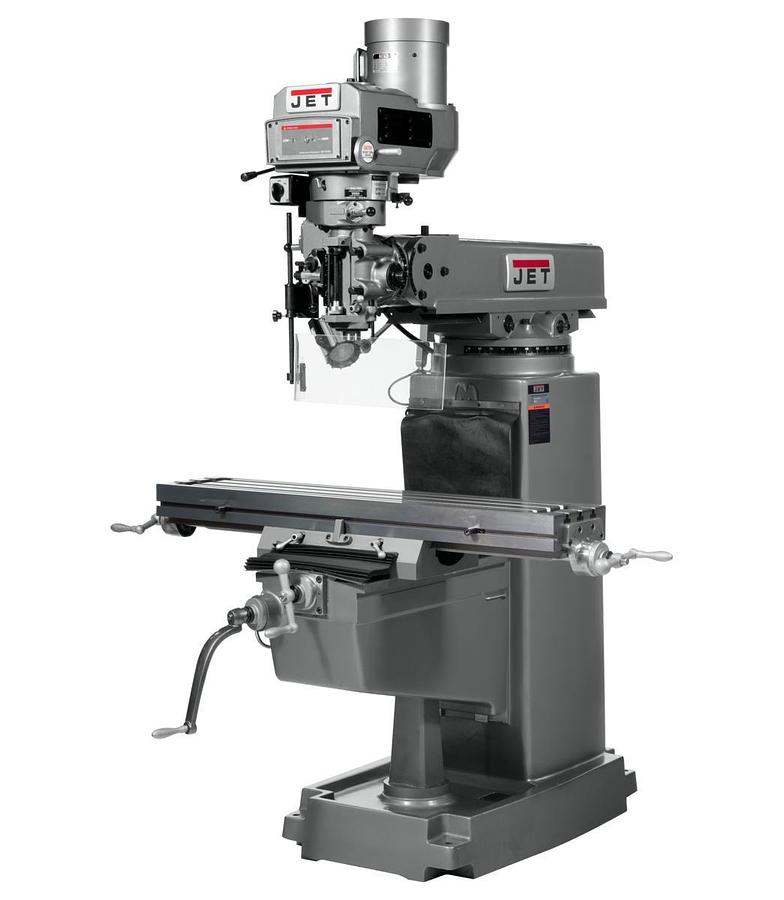

JTM-1050VS2 Mill With 3-Axis Newall DP700 DRO (Quill) With X, Y and Z-Axis Powerfeeds And Power Draw Bar
Description
JTM-1050 Mill With 3-Axis Newall DP700 DRO (Quill) With X, Y and Z-Axis Powerfeeds And Power Draw Bar
Featuring Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the spindle, this Variable Speed Milling Machine provides consistent and reliable operation. An internal coolant tank is built into base for use with a coolant system (coolant pump not included). The newly designed column and base incorporates a rigid, robust design that is easily leveled without lifting the machine. JET Mills have features you've come to expect and are backed by the industry-leading JET Two Year Warranty.
Specifications
| Manufacturer | Jettools |
| Model | JTM-1050VS2 |
| Condition | New |
| Stock Number | JT9-690234 |
| Collet Capacity | 1/8 - 7/8 |
| Distance Spindle to Column (Max.) (In.) | 26 |
| Max Distance Spindle to Table (In.) | 19 |
| Motor (HP) | 3 HP, 230/460V, 3Ph |
| Number of Axis | 3 (Quill) |
| Overall Dimensions (L x W x H) (In.) | 96 x 78 x 88 |
| Power Draw Bar | Pneumatic |
| Powerfeed | X, Y, Z-Axis |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 3-3/8 |
| Quill Down Feed Rates (IPR) | .0015 - .003 - .006 |
| Range of Spindle Speeds (RPM) | 70 - 3,800 |
| Spindle Taper (In. x TPI) | R-8 |
| Spindle Travel (In.) | 5 |
| Style (Type) | Variable Speed R8 |
| T-Slot Centers (In.) | 2-1/2 |
| Table Cross Travel (In.) | 15-1/4 |
| Table Longitudinal Travel (In.) | 35 |
| Table Longitudinal Travel With Powerfeed (In.) | 29-3/4 |
| Table Size (L x W) (In.) | 10 x 50 |
| Travel of Knee (In.) | 14-1/4 |
| Travel of Ram (In.) | 20-1/2 |
| Warranty | 2 Year |
| Work Table Weight Capacity (Lbs.) | 720 |
| Gross Weight | 2900.0 |
| Net weight | 2900.0 |
