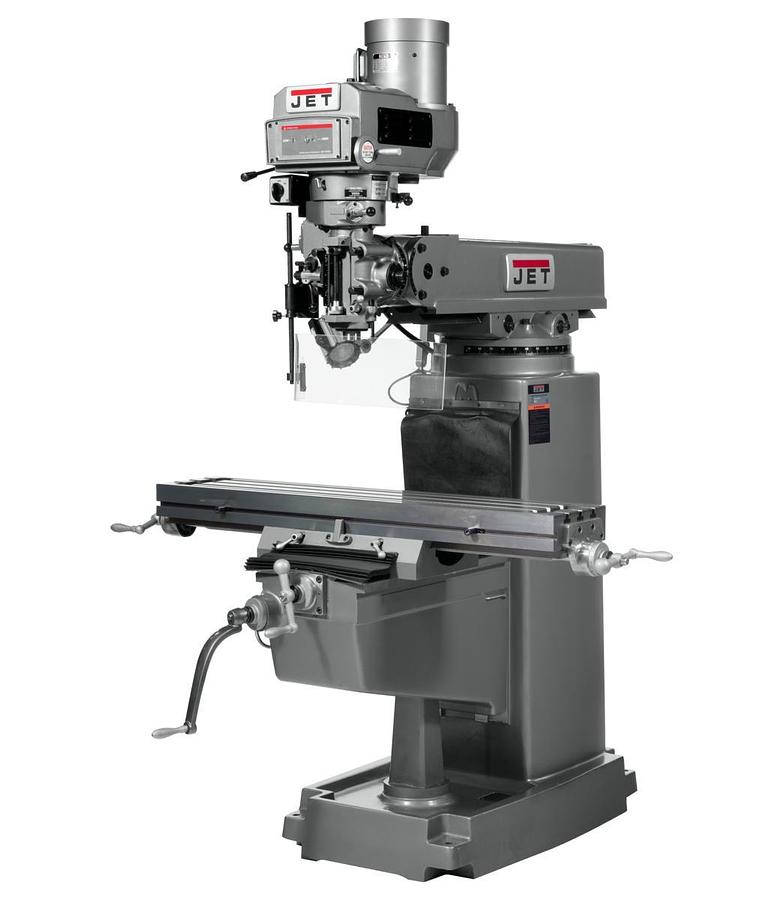

JTM-1050VS2 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed and 8" Riser Block

Description

JTM-1050 Mill With ACU-RITE 203 DRO With X-Axis Powerfeed and 8" Riser Block

The JET JTM-1050VS2 features Certified Meehanite® castings, a heavy-duty hardened and ground 10” x 50” table, and high precision class 7 precision bearings support the internally cooled spindle head. Precision bored and honed milling heads ensure quality cuts, and the three-stage power downfeed with automatic stop makes the JET Variable Speed Milling Machines easy to use. JET precision engineering ensures superior results with all the features you've come to expect, all backed by the industry-leading JET Two Year Warranty.


  • Adjustable gibs throughout
  • Chrome lead screws on X and Y axis
  • Chrome-plated motor shaft with bearing support at end
  • Hardened and ground square knee ways and cross ways
  • Heavy-duty spindle brake
  • Large Diameter quill is chromed
  • Precision bored and honed milling head
  • Tolerance test sheet included
  • Specifications

    ManufacturerJettools
    ModelJTM-1050VS2
    ConditionNew
    Stock NumberJT9-690216
    Number of Axis2
    Overall Dimensions (L x W x H) (In.)96 x 78 x 88
    PowerfeedX-Axis
    Prop 65Cancer and Reproductive Harm
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Table Longitudinal Travel With Powerfeed (In.)29-3/4
    Warranty2 Year
    Gross Weight3100.0
    Net weight3000.0
