JMD-40GH Geared Head Mill/Drill

or
Call (954)444-4004

Description

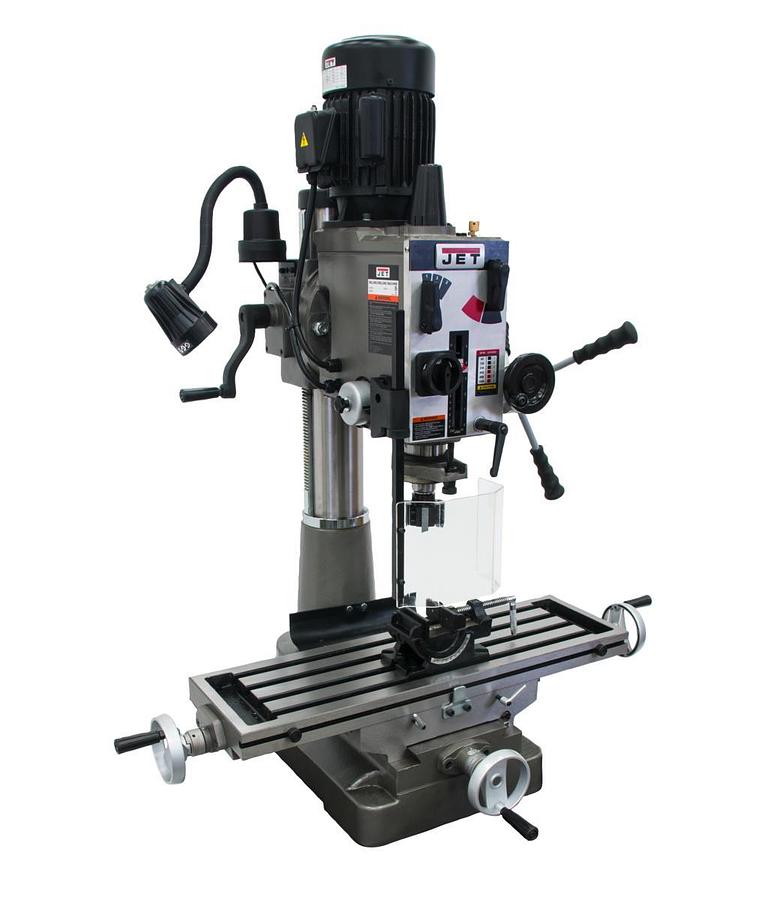

JMD-40GH Geared Head Mill/Drill

Engineered for precision drilling, the heavy-duty JMD-40GH Round Column Geared Head Mill Drill is loaded with intuitive features for maximum accuracy.


  • Calibrated fine down feed built in
  • CSA/CUS Certified
  • Easy to read internal depth gauge
  • Full power to the cutting tools through 6 speed geared head
  • Heavy-duty design allows for a variety of precision drilling applications
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
  • Rapid spindle speed changes through quick-select gear shift levers

    • Show All

    Specifications

    ManufacturerJettools
    ModelJMD-40GH
    ConditionNew
    Stock NumberJT9-351040
    Column Diameter (In.)4-1/2
    Face Mill Capacity (In.)4
    Max Distance Spindle to Table (In.)15-3/4
    Motor (HP)1-1/2HP, 115/230V, 1Ph
    Number of Spindle Speeds6
    Overall Dimensions (L x W x H) (In.)28 x 39-1/4 x 42-1/2
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3
    Range of Spindle Speeds (RPM)65, 130, 220, 480, 925, 1550rpm
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Swing (In.)21
    Table Longitudinal Travel (In.)20-1/2
    Warranty2 Year
    Gross Weight694.0
    Net weight628.0
