Description

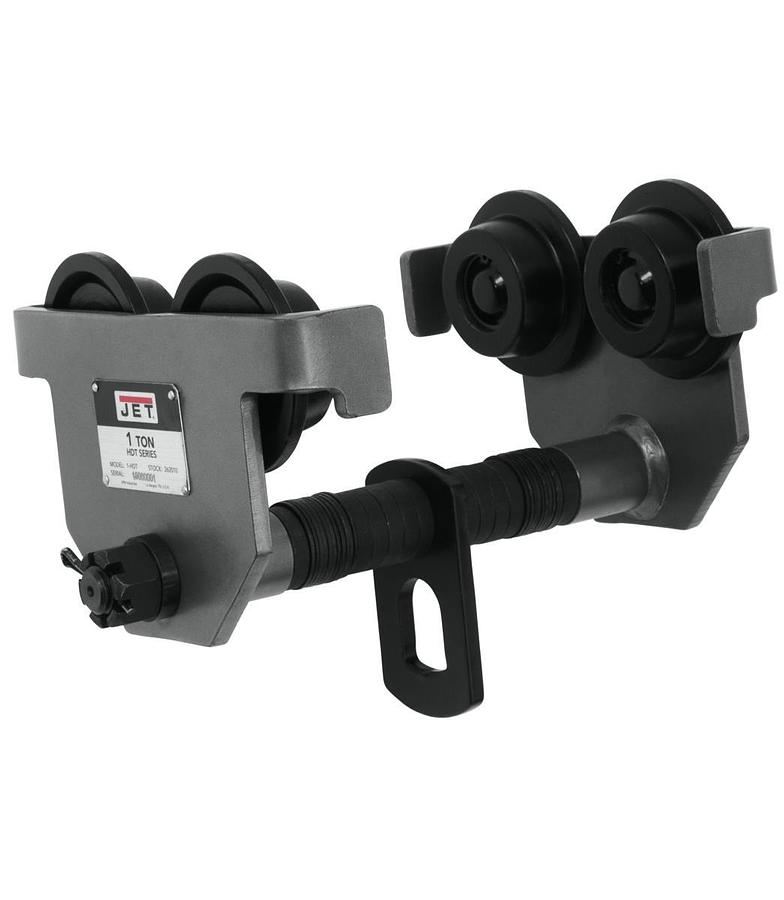

1-HDT, 1-Ton Manual Trolley

JET® HDT Series Manual Trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
  • Welded all-steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model1-HDT
    ConditionNew
    Stock NumberJT9-262010
    Capacity (Lbs.)2200
    Hook Mount Headroom (In.)4-11/16
    Load Capacity (Tons)1
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)39
    Minimum Beam Flange Width (In.)3
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)2-1/2
    Gross Weight18.0
    Net weight17.0
    Max. Hook Size (W/in.)1-3/16
    Minimum Beam Height (In.)5
    Overall Dimensions (L x W x H / in.)8-3/8 x 12-1/2 x 5-1/8
