3-PT, 3-Ton Heavy Duty Manual Trolley

or
Call (954)444-4004

Description

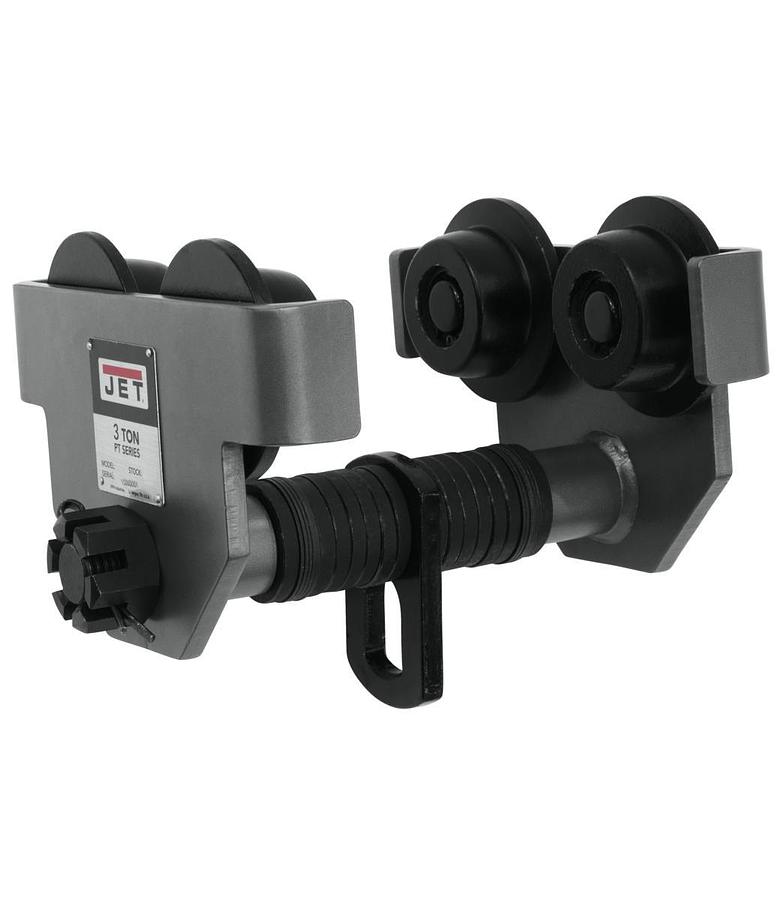

3-PT, 3-Ton Heavy Duty Manual Trolley

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model3-PT
    ConditionNew
    Stock NumberJT9-252030
    Capacity (Lbs.)6600
    Hook Mount Headroom (In.)7-1/3
    Load Capacity (Tons)3
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)51
    Minimum Beam Flange Width (In.)4
    Minimum Beam Height (In.)5
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)7-1/3
    Gross Weight84.6
    Net weight84.6
    Max. Hook Size (W/in.)1-7/9
    Overall Dimensions (L x W x H / in.)13-5/8 x 14-4/7 x 8-1/2
