1/2-HDT, 1/2-Ton Manual Trolley

or
Call (954)444-4004

Description

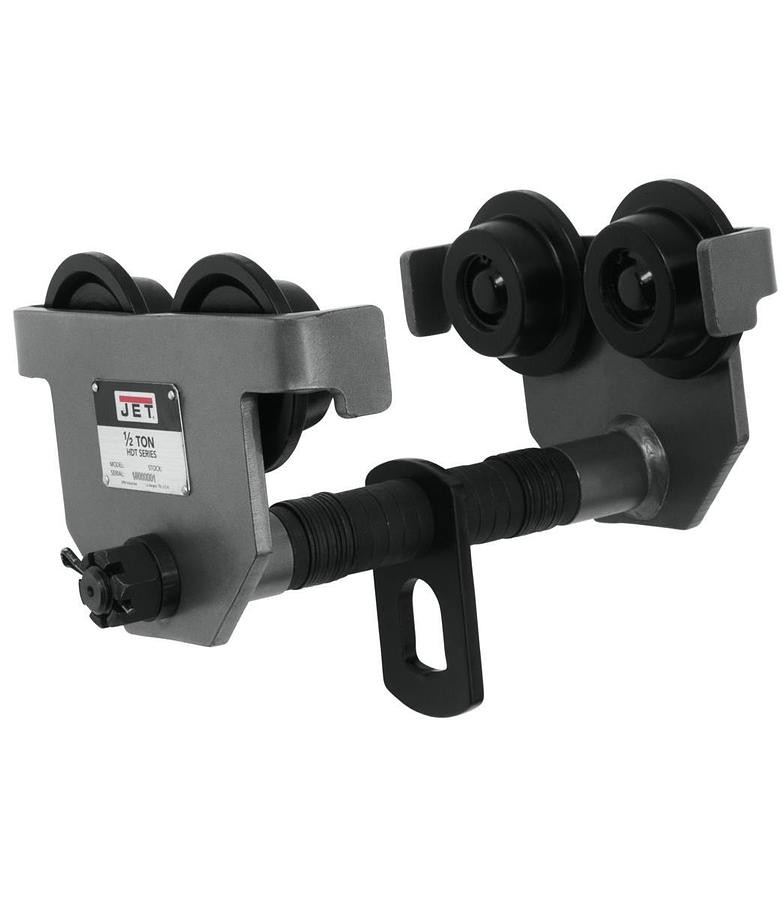

1/2-HDT, 1/2-Ton Manual Trolley

JET® HDT Series Manual Trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
  • Welded all-steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model1/2-HDT
    ConditionNew
    Stock NumberJT9-262005
    Capacity (Lbs.)1100
    Hook Mount Headroom (In.)4
    Load Capacity (Tons)1/2
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)35
    Minimum Beam Flange Width (In.)2-1/2 - 8
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)2-13/16
    Gross Weight12.0
    Net weight11.0
    Max. Hook Size (W/in.)1-1/4
    Minimum Beam Height (In.)3
    Overall Dimensions (L x W x H / in.)7-3/8 x 11-13/16 x 4-5/8
