Description

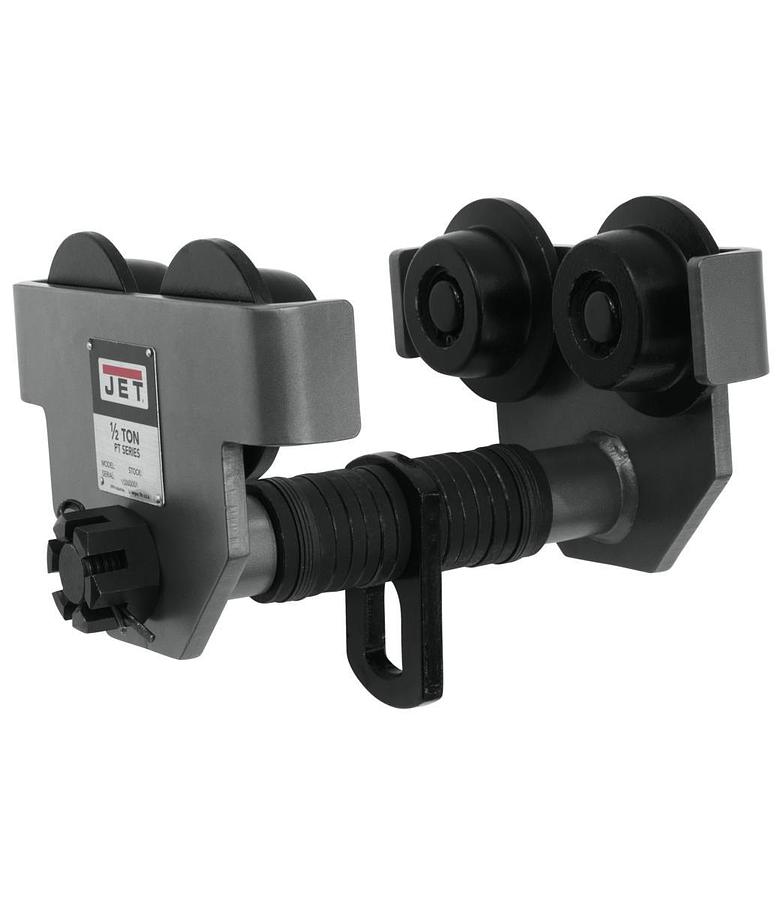

JET 1/2-PT 1/2-Ton Heavy-Duty Manual Trolley (252005)

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model1/2-PT
    ConditionNew
    Stock NumberJT9-252005
    Capacity (Lbs.)1100
    Hook Mount Headroom (In.)4-4/9
    Load Capacity (Tons)1/2
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)39
    Minimum Beam Flange Width (In.)2-1/2
    Minimum Beam Height (In.)4
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)2-2/7
    Gross Weight18.85
    Net weight18.85
    Max. Hook Size (W/in.)15/16
    Overall Dimensions (L x W x H / in.)8-1/3 x 12-2/7 x 5-1/8
