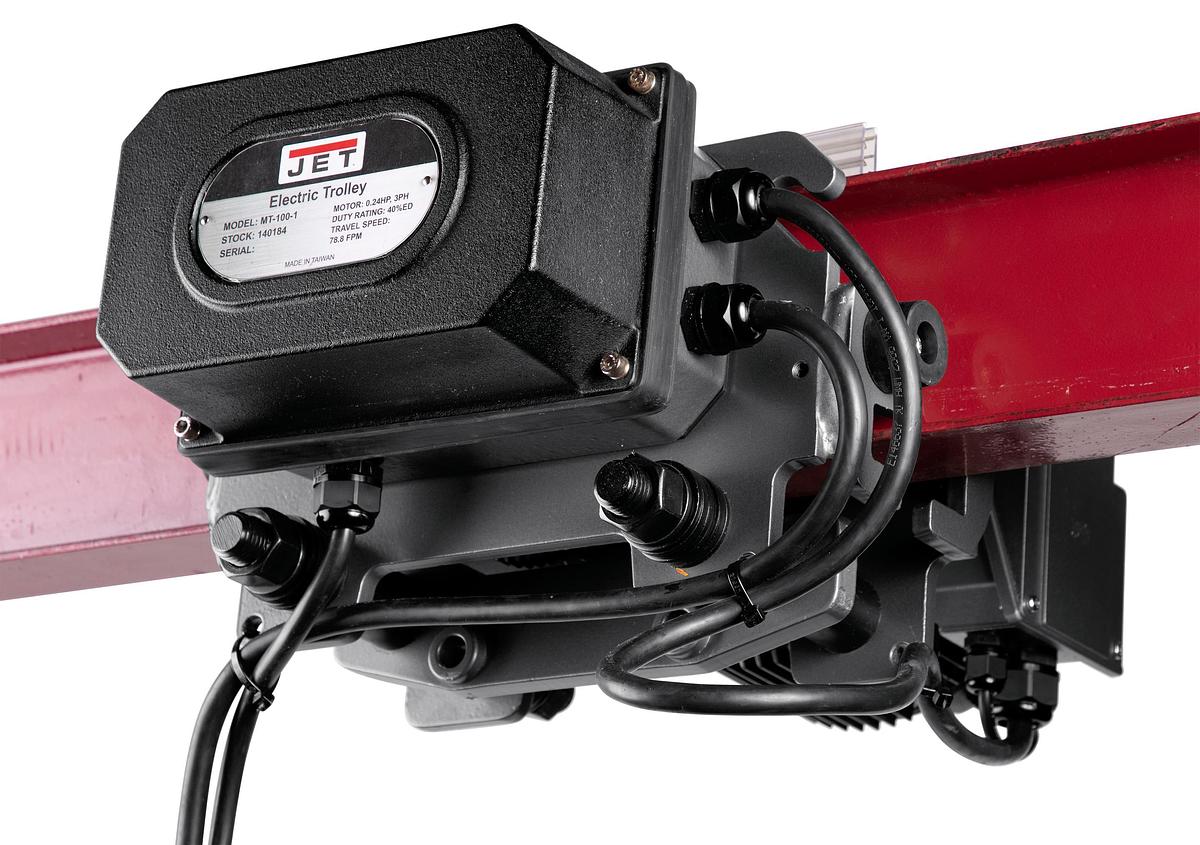

MT500, 5 Ton Two Speed Electric Trolley 3-Phase 230V

or
Call (954)444-4004

Description

MT500, 5TON, ELECTRIC 2 SPEED TROLLEY 3Ph 230V

JET® MT Series Electric Trolley is designed and built for safety, durability, and efficient operation in the toughest industrial applications. Designed with two speeds you can move materials quickly and safely. Allowing your material to then slow down to be placed exactly where you need it without the excessive bump firing. All of this with safe travel speeds up to 79 feet per minute and as low as 20 feet per minute to give you the ability to be more efficient with every load. The MT series is available from 1/2 Ton to 5 Ton capacities. Let’s Get to Work.


  • Heavy-Duty motor puts out up to 0.8HP making it the strongest in it's class
  • TAA Approved
  • Two speeds reduces bump firing to while still allowing high speed movement of materials
  • Indoor and Outdoor use with IP-55 rating for trolley and IP-65 rating for the pendant
  • Expanded flange capacity kits are available

    • Show All

    Specifications

    ManufacturerJettools
    ModelMT500
    ConditionNew
    Stock NumberJT9-140190
    Capacity (Lbs.)11000
    Load Capacity (Tons)5
    Maximum Beam Flange Width (In.)7
    Minimum Beam Curve Radius (In.)78.7
    Minimum Beam Flange Width (In.)5
    Motor (HP)0.2 / 0.8
    Motor Phase3
    Motor Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)1-3/4
    Travel Speed - Low (FPM)20.0000
    Travel Speed - High (FPM)79.0000
