Description

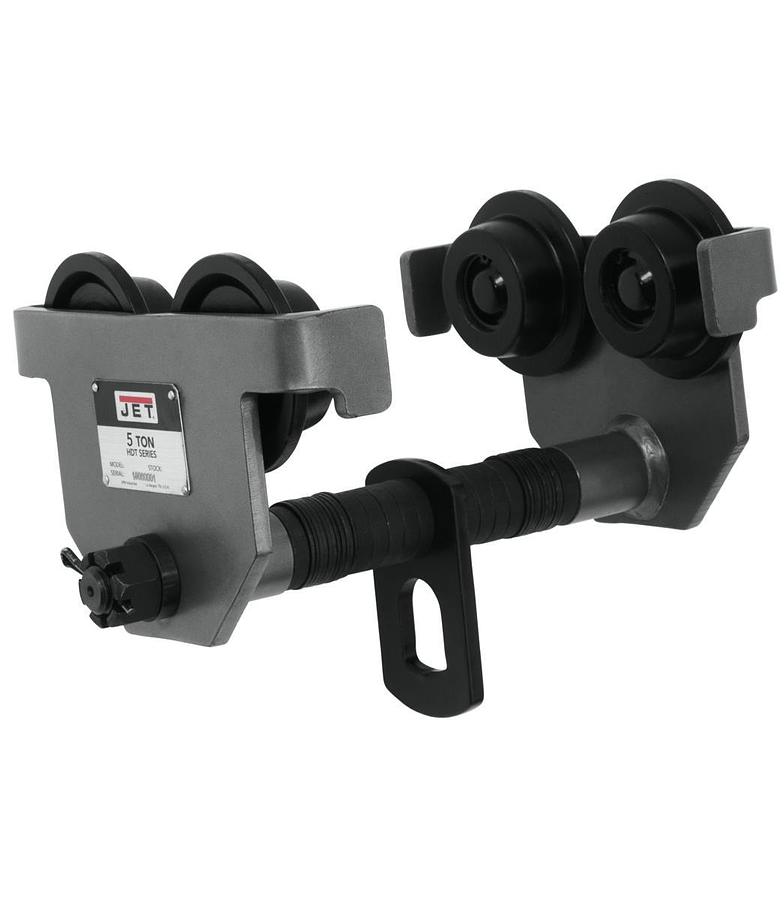

5-HDT, 5-Ton Manual Trolley

JET® HDT Series manual trolleys are available in capacities from 1/2 ton to 5 Tons. They are designed for low maintenance, trouble free use on wide flange H-beams, standard I-beams or curved track. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened steel wheels and double sealed lubricated ball bearings provide smooth movement
  • Welded all-steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model5-HDT
    ConditionNew
    Stock NumberJT9-262050
    Capacity (Lbs.)11000
    Hook Mount Headroom (In.)7-11/16
    Load Capacity (Tons)5
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)55
    Minimum Beam Flange Width (In.)4-5/8 - 8
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)4-3/4
    Gross Weight90.0
    Net weight88.0
    Max. Hook Size (W/in.)2-1/8
    Minimum Beam Height (In.)10
    Overall Dimensions (L x W x H / in.)14-13/16 x 14-13/16 x 8-9/16
