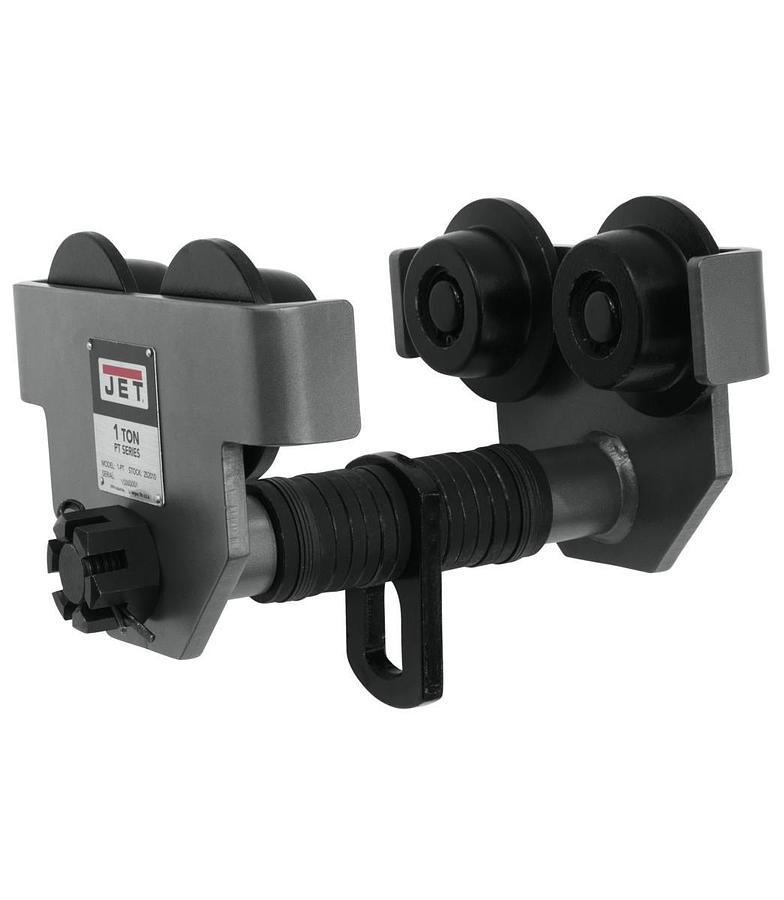

1-PT, 1-Ton Heavy Duty Manual Trolley

or
Call (954)444-4004

Description

1-PT, 1-Ton Heavy Duty Manual Trolley

JET® PT Series heavy duty Manual Trolleys are available in capacities from 1/2 ton to 10 Tons. Built with heavy gauge steel for increased durability, the large steel wheels and thicker bearings provide smooth movement on a variety of beams. The built in bumper guards increase user safety and extend the life of the trolley. Each JET® Manual Trolley conforms to OSHA regulations, and ANSI / ASME standards.


  • Built-in bumper guards on the side plates increase safety and extend trolley life
  • Complies with OSHA Regulations, ANSI / ASME B30.11 and B30.17 standards
  • Easily adjustable to wide-flange H-beams, standard I-beams, or curved track with the included spacer washers
  • Hardened large steel wheels and thicker double sealed lubricated ball bearings provide smooth movement
  • Welded heavy gauge steel frame and powder coat finish provide maximum durability and protection

    • Show All

    Specifications

    ManufacturerJettools
    Model1-PT
    ConditionNew
    Stock NumberJT9-252010
    Capacity (Lbs.)2200
    Hook Mount Headroom (In.)5
    Load Capacity (Tons)1
    Maximum Beam Flange Width (In.)8
    Minimum Beam Curve Radius (In.)39
    Minimum Beam Flange Width (In.)3 - 8
    Minimum Beam Height (In.)4
    Prop 65Cancer and Reproductive Harm
    Warranty2 Year
    Wheel Diameter (In.)5
    Gross Weight33.05
    Net weight33.05
    Max. Hook Size (W/in.)1-1/5
    Overall Dimensions (L x W x H / in.)10 x 13 x 6
