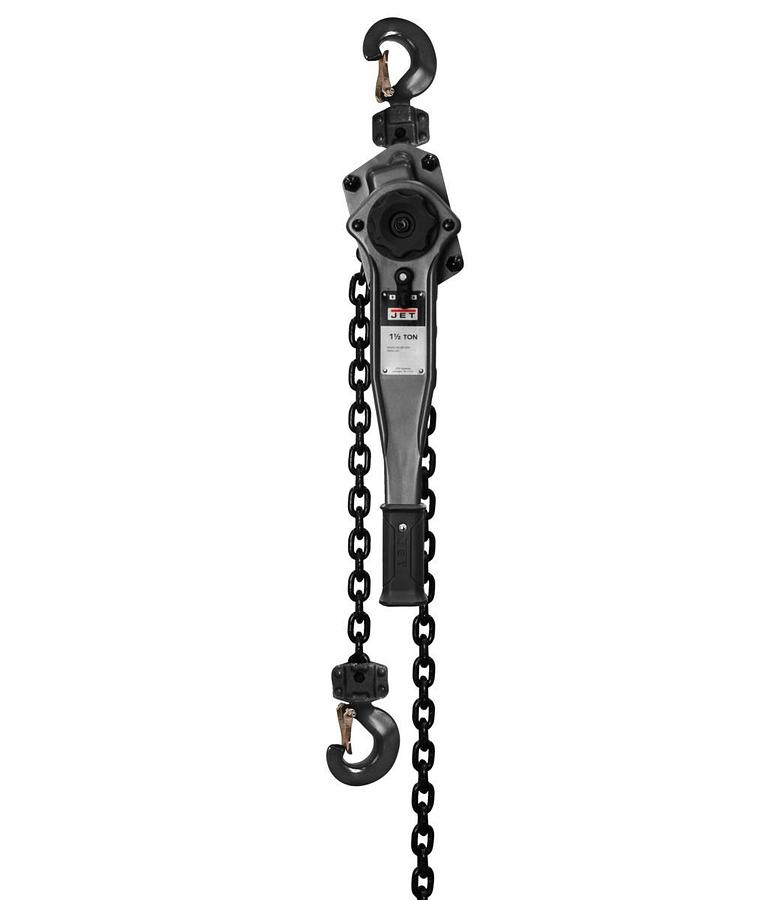

JLP-150A-5SH, 1-1/2 Ton Lever Hoist, 5' Lift & Shipyard Hooks

or
Call (954)444-4004

Description

JLP-150A-5SH, 1-1/2 Ton Lever Hoist, 5' Lift & Shipyard Hooks

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.


  • All steel construction
  • Impact resistant all steel construction for added durability and protection
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • JET’s improved easy free chain design is a two-step, no load, free chaining system. The system permits quicker hoist positioning and take up of slack chain, and is engineered not to free chain under load
  • NEW! Redesigned ergonomic grip allows for greater operator control and increased comfort
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety

    • Show All

    Specifications

    ManufacturerJettools
    ModelJLP-150A-5SH
    ConditionNew
    Stock NumberJT9-287700
    Headroom (in.)15
    Capacity (Lbs.)3300
    Lift (Ft.)5
    Load Capacity (Tons)1-1/2
    Load Chain Dimensions dia/mm)8 X 24
    Prop 65Cancer and Reproductive Harm
    WarrantyLifetime
    Lever Length (in.)16-1/7
    Lbs. of Pull to Lift Capacity49.0000
    Gross Weight27.18
    Net weight25.0
