JLP-025A-10 1/4 Ton Mini-Puller, 10' Lift

or
Call (954)444-4004

Description

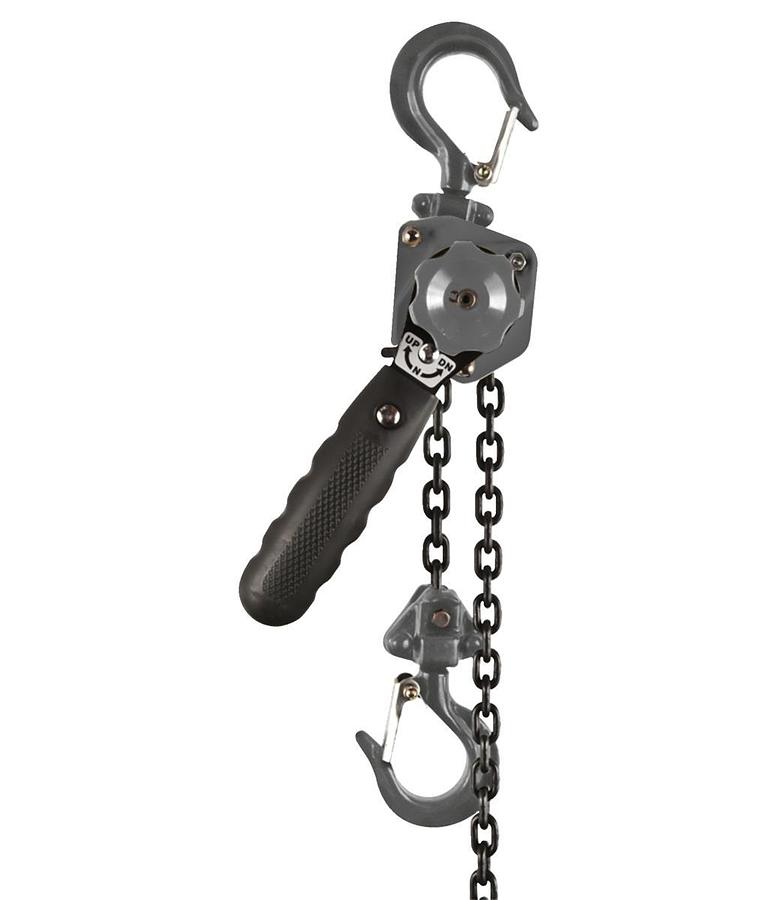

JET JLP-025A-10, 1/4-Ton Mini-Puller Hoist, 10' Lift (287101)

JET® JLP-A Series Lever Hoists combine safety, reliability, and durability that are designed to perform in light to medium-duty industrial applications. The patented Brake Wear Indicator increases safety by letting you know when to replace the friction disks. JET® also offers the option of shipyard hooks, virtually eliminating stretched hooks caused by point or tip loading. The JET® JLP-A Lever Hoist is available in ¼ ton to 6 ton capacities with standard lifts of 5, 10, 15, and 20 feet (custom lifts available). The JET® JLP-A Series is the perfect choice for a contractor grade Lever Hoist.


  • Cast steel safety latches are secured with Allen screws and lock nuts
  • Compact design with smaller body and lightweight design for low headroom applications and use in confined areas
  • Hooks slowly stretch to indicate an overload situation increasing jobsite safety
  • Impact resistant all steel construction for added durability and protection
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging
  • Needle bearing design increases efficiency and promotes smooth operation
  • This product complies with ANSI / ASME B30.21 and HST-3 Impact resistant all steel construction for added durability and protection
  • Weston Style, double pawl brake design splits the load to opposite sides of the ratchet gear for greater load security

    • Show All

    Specifications

    ManufacturerJettools
    ModelJLP-025A-10
    ConditionNew
    Stock NumberJT9-287101
    Headroom (in.)8-1/4
    Capacity (Lbs.)500
    Lift (Ft.)10
    Load Capacity (Tons)1/4
    Load Chain Dimensions dia/mm)4 x 12
    Prop 65Cancer and Reproductive Harm
    WarrantyLifetime
    Lever Length (in.)6
    Lbs. of Pull to Lift Capacity60.0000
    Gross Weight5.4
    Net weight5.06
