10-Ton Hand Chain Hoist with 10' Lift | S90-1000-10

or
Call (954)444-4004

Description

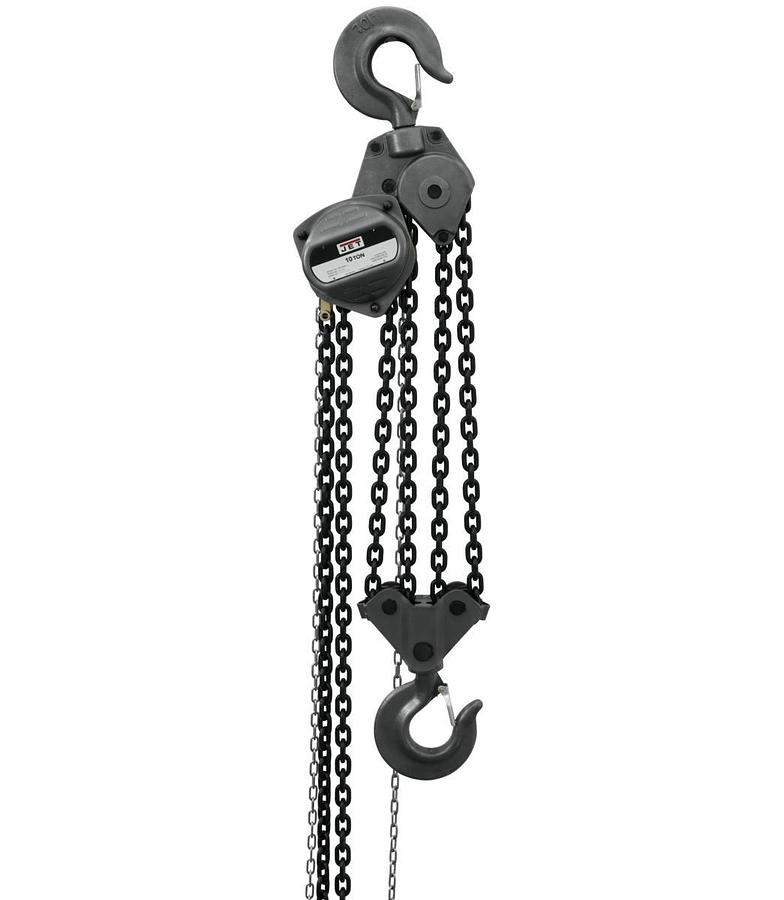

S90-1000-10, 10-Ton Hand Chain Hoist With 10' Lift

JET® S90 Series Hand Chain Hoists were designed with all steel construction and ensure reliability and durability to perform in light-duty industrial applications. Easily maintained and serviced, the JET® S90 is available in capacities from ½ ton to 10 ton and standard lifts of 10, 15, 20, and 30 feet (custom lifts available). The JET® S90 is the ideal contractor grade hoist.


  • Grade 80 black oxide coated load chain for added durability
  • Heat Treated Load Plates
  • Industrial rated alloy steel hooks rotate 360 degrees for easy rigging and slowly stretch to indicate an overload situation
  • Intended for the harshest environments, the heat treated load plates and case hardened corrosive resistant internal parts extend the life of the hoist
  • Needle bearings support the load sheave to increase efficiency and promote smooth operation
  • Secured with Allen screws and lock nuts, the cast-steel safety latches are more durable than stamped steel latches and will not bend out of compliance with lifting regulations
  • The smaller body and lightweight design are ideal for confined areas and low headroom applications
  • The Weston style double ratchet pawl brake design splits the load to opposite sides of the ratchet gear for greater load security and increased safety

    • Show All

    Specifications

    ManufacturerJettools
    ModelS90-1000-10
    ConditionNew
    Stock NumberJT9-101960
    Hand Chain To Lift Load 1 ft.357
    Capacity (Lbs.)22000
    Lift (Ft.)10
    Load Capacity (Tons)10
    Load Chain Dimensions dia/mm)10 x 30
    Prop 65Cancer and Reproductive Harm
    WarrantyLifetime
    Lbs. of Pull to Lift Capacity96.0000
    Gross Weight216.0
    Net weight198.0
    Headroom (In.)30
