EVBS-26, 26" EVS Vertical Bandsaw

or
Call (954)444-4004

Description

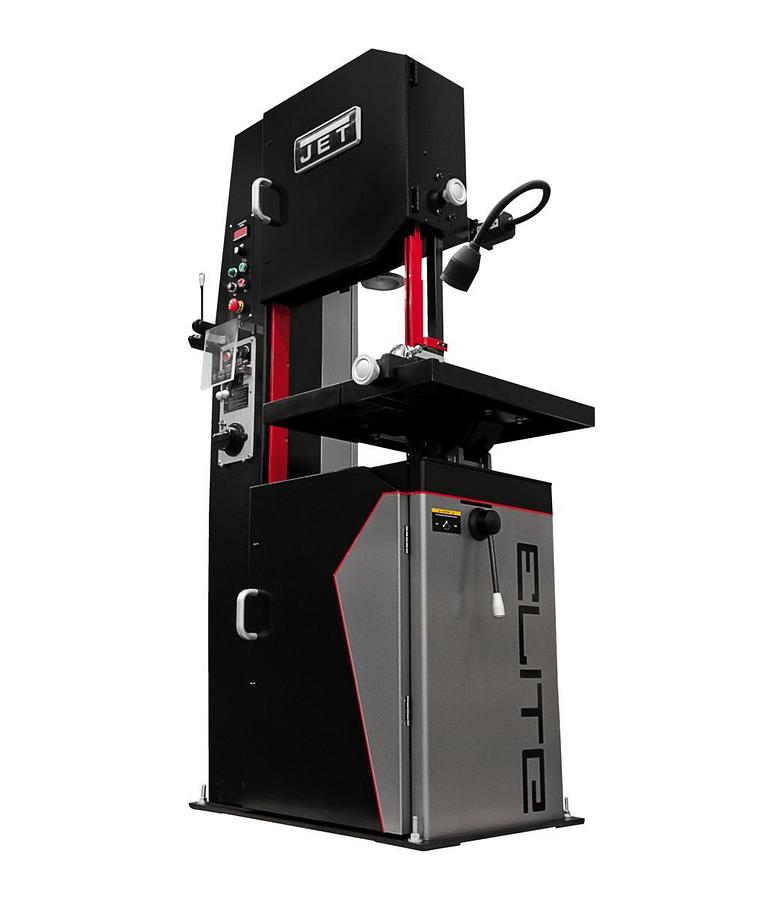

EVBS-26, 26" EVS Vertical Bandsaw

Elite EVS Vertical Bandsaws are the perfect blend of power and balance. Featuring variable speed drive-train with precision balanced cast-iron blade wheels with a bonded rubber blade track, precision ground articulating table, 4.2 KVA Bi-Metal Blade stations, and CSA / CUS Certification make Elite vertical bandsaws the choice for precision sawing of ferrous and non-ferrous materials.


  • 4.2 Kilo-volt ampere bi-metal blade welder has a safety glass cover for increased user safety
  • Built-in chip blower re-directs debris from the cutting area, while the magnifying glass provides a clear view
  • Easily adjustable blade guard for increased safety
  • Handwheel with blade tensioning gauge accurately measures blade pressure to prevent breakage
  • Heavy-duty enclosed steel frame provides strength and rigidity
  • Precisely ground, articulating table with 10° left and 45° right movement for contour cutting at any angle
  • Precision balanced cast-iron blade wheels transmit speed and torque to the blade
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life

    • Show All

    Specifications

    ManufacturerJettools
    ModelEVBS-26
    ConditionNew
    Stock NumberJT9-891115
    Warranty3 Year Elite
    Blade Length (In.)185-1/2
    Blade Speeds (SFPM)Variable 50-5000
    Blade Width (Min.-Max.) (In.)1/8 - 1
    Height Capacity (Max.) (In.)14
    Overall Height (In.)83-1/2
    Prop 65Cancer and Reproductive Harm
    Table Height (In.)39-3/8
    Table Size (L x W) (In.)27-1/2 x 23-1/2
    Throat Capacity (In.)26
    Welding voltage (V)4.2 KVA Bi-Metal Welder
    Motor (HP)2HP, 230/460V, 3-Phase
    Prewired Voltage (V.)230
    Electrics2HP, 230/460V, 3 Phase
    Net weight1433.0
    Gross Weight1741.0

    Documents
