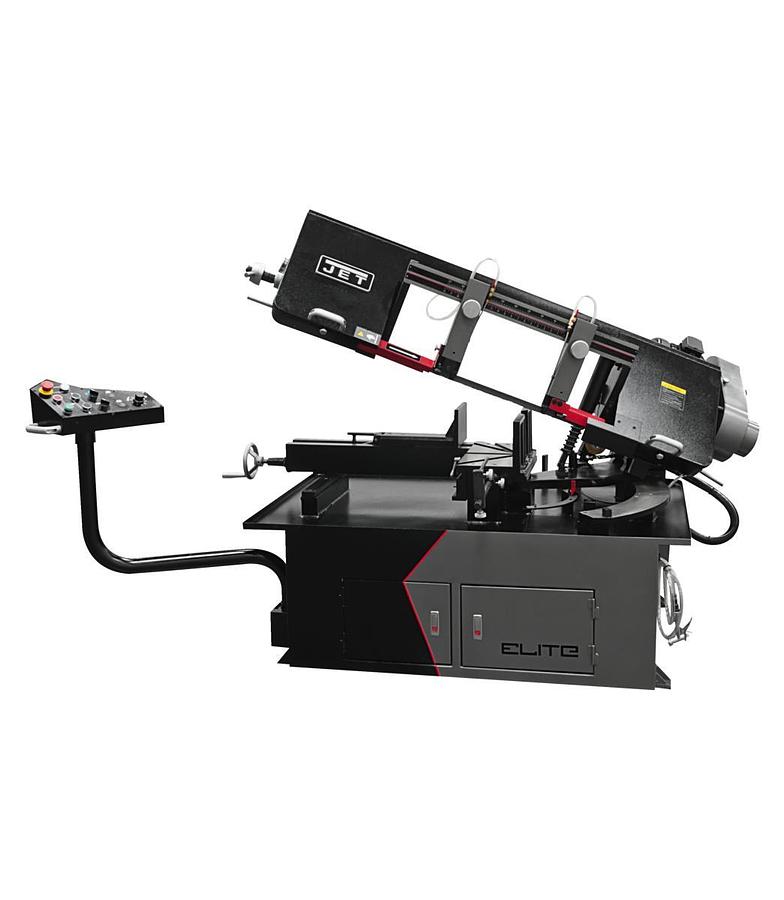

10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise | EHB-1018VMH

or
Call (954)444-4004

Description

EHB-1018VMH, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw With Hydraulic Vise

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Designed with heavy-duty construction, these saws reduce vibration and deflection. Mitering and dual mitering saws bring added level of capabilities with dual mitering allowing for compound angle cutting of 60° right and 45° left. All saws come standard with variable speed drive train that allows the operator to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. The ELITE swing away panel relocates saw controls to a single location, offering finger-tip Bullets operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.


  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Hydraulic quick positioning vise for clamping of materials
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • Semi-automatic bow raises after cut to predetermined height
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 in.
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life

    • Show All

    Specifications

    ManufacturerJettools
    ModelEHB-1018VMH
    ConditionNew
    Stock NumberJT9-891080
    Bed Height (In.)27
    Blade Length (In.)144
    Blade Speed (SFPM)53-257
    Blade Speeds (SFPM)53 - 257
    Blade Wheel Diameter (In.)14
    DriveVariable Speed
    Electrics2HP, 230/460V/ 3-Ph
    Head Movement (Deg.)60
    Motor (HP)2 HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.)85 x 40 x 44
    Overall Height (In.)44
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)10 x 12
    Rectangle at 60 Degrees (In.)6 x 5
    Rectangle at 90 Degrees (In.)10 x 17
    Round at 45 Degrees (In.)10
    Round at 60 Degrees (In.)6
    Round at 90 Degrees (In.)10
    Shipping Weight (Lbs.)1144
    Square at 45 Degrees (In.)10 x 10
    Square at 60 Degrees (In.)5-1/2 x 5-1/2
    Square at 90 Degrees (In.)10 x 10
    Vise Swivels (Deg.)45
    Warranty3 Year Elite
    Gross Weight1210.0
    Net weight1100.0
    Blade Size (In.)1 x .035 x 144
