ECB-1422V, 14 x 22" Semi-Automatic Variable Speed Dual Column Bandsaw 5HP, 230/460V, 3Ph"

or
Call (954)444-4004

Description

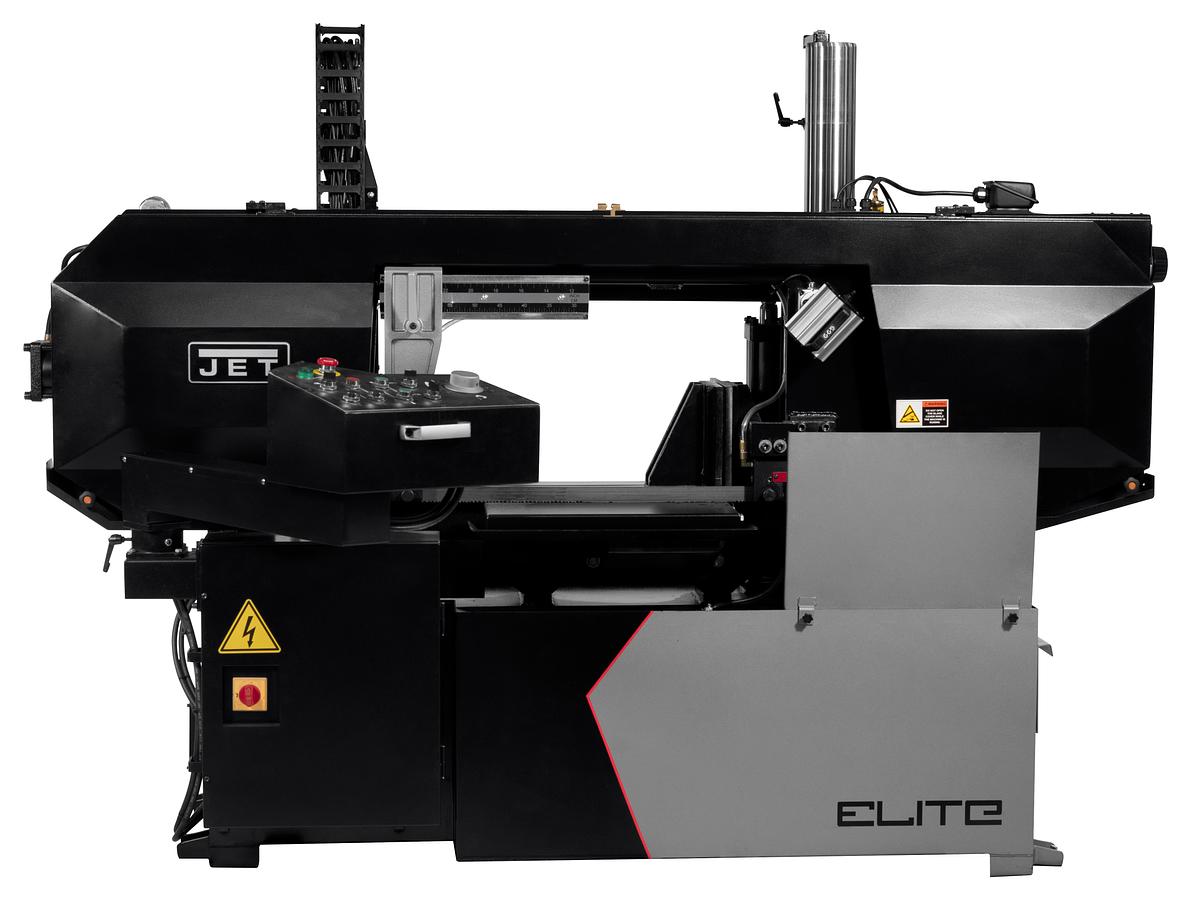

JET Elite ECB-1422V, 14" x 22" Semi-Automatic Variable-Speed Bandsaw, 5HP, 230/460V (891160)

JET Elite's Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.


  • Heavy duty construction reduces vibration and deflection
  • Easy frame height adjustment
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Mechanical variable speed drive system for easy speed changes
  • Semi-auto on saw bow lifting and hydraulic vise
  • Swing away control box allows Operator to use in any position
  • Two column design for more productive cutting

    • Show All

    Specifications

    ManufacturerJettools
    ModelECB-1422V
    ConditionNew
    Stock NumberJT9-891160
    Bed Height (In.)29
    Blade Length (In.)192-1/2
    Blade Speed (SFPM)75 - 250
    Blade Speeds (SFPM)75 - 250
    Blade Wheel Diameter (In.)18-1/2
    Coolant Capacity (Gal.)23.8
    Cutting Capacity (W x D) (In.)14 x 22
    DriveVariable Speed
    Electrics5HP, 230/460V, 3Ph
    Motor (HP)5 HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.)93-1/2 x 25-29/32 x 72-23/32
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 90 Degrees (In.)14-1/8 x 22
    Round at 90 Degrees (In.)14-1/8
    Square at 90 Degrees (In.)14-1/8
    Warranty3 Year Elite
    Gross Weight2992.0
    Net weight2266.0
    Blade Size (In.)1.33 x 0.043 x 192-1/8
    Coolant Pump Motor1/6HP, 230/460V
    Oil Pump Motor1HP, 230/460V, 3Ph
