10 x 18 Semi-Auto Variable Speed Dual Mitering Saw | EHB-1018VM

or
Call (954)444-4004

Description

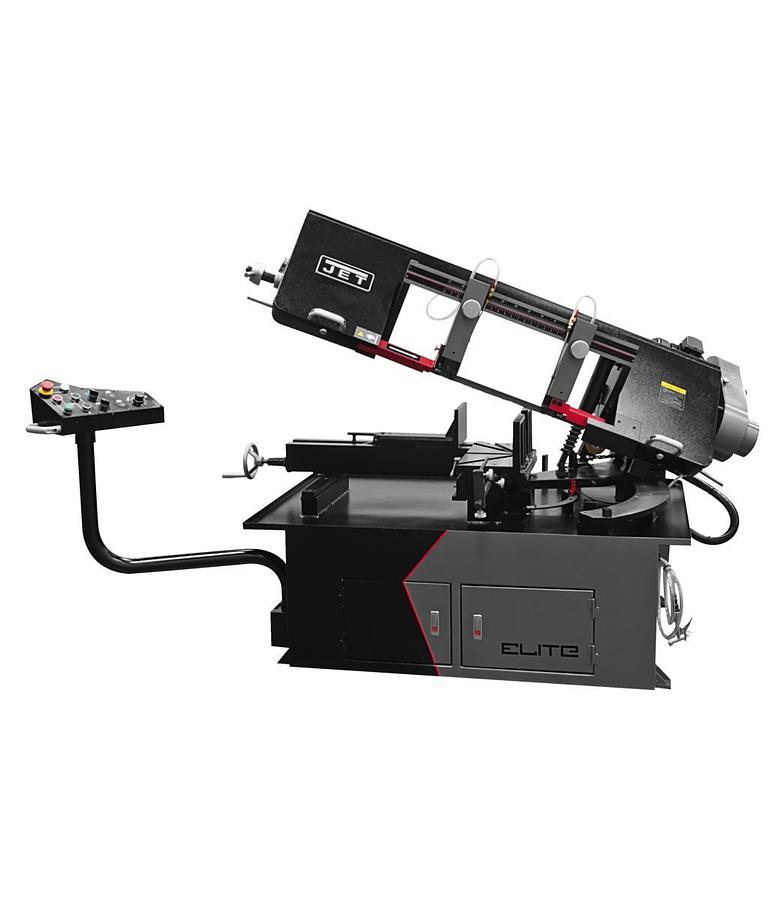

EHB-1018VM, 10 x 18 Semi-Auto Variable Speed Dual Mitering Saw

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with a variable speed drive train that allows the operator to fine tune the blade speed fast and easily. To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 27 inches. In addition, the ELITE swing away
panel relocates saw controls to a single location, offering fingertip operation of most major saw functions. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.


  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Dual mitering allows for compound angle cutting of 60° right and 45° left
  • Heavy-duty construction reduces vibration and deflection
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • Semi-automatic bow raises after cut to predetermined height
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life

    • Show All

    Specifications

    ManufacturerJettools
    ModelEHB-1018VM
    ConditionNew
    Stock NumberJT9-891070
    Bed Height (In.)27
    Blade Length (In.)144
    Blade Speed (SFPM)53-257
    Blade Speeds (SFPM)53 - 257
    Blade Wheel Diameter (In.)14
    DriveVariable Speed
    Electrics2HP, 230/460V/ 3-Ph
    Head Movement (Deg.)60
    Motor (HP)2 HP, 230/460V, 3Ph
    Overall Dimensions (L x W x H) (In.)85 x 40 x 44
    Overall Height (In.)44
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)10 x 12
    Rectangle at 60 Degrees (In.)6 x 5
    Rectangle at 90 Degrees (In.)10 x 17
    Round at 45 Degrees (In.)10
    Round at 60 Degrees (In.)6
    Round at 90 Degrees (In.)10
    Shipping Weight (Lbs.)1144
    Square at 45 Degrees (In.)10 x 10
    Square at 60 Degrees (In.)5-1/2 x 5-1/2
    Square at 90 Degrees (In.)10 x 10
    Vise Swivels (Deg.)45
    Warranty3 Year Elite
    Gross Weight1210.0
    Net weight1100.0
    Blade Size (In.)1 x .035 x 144
