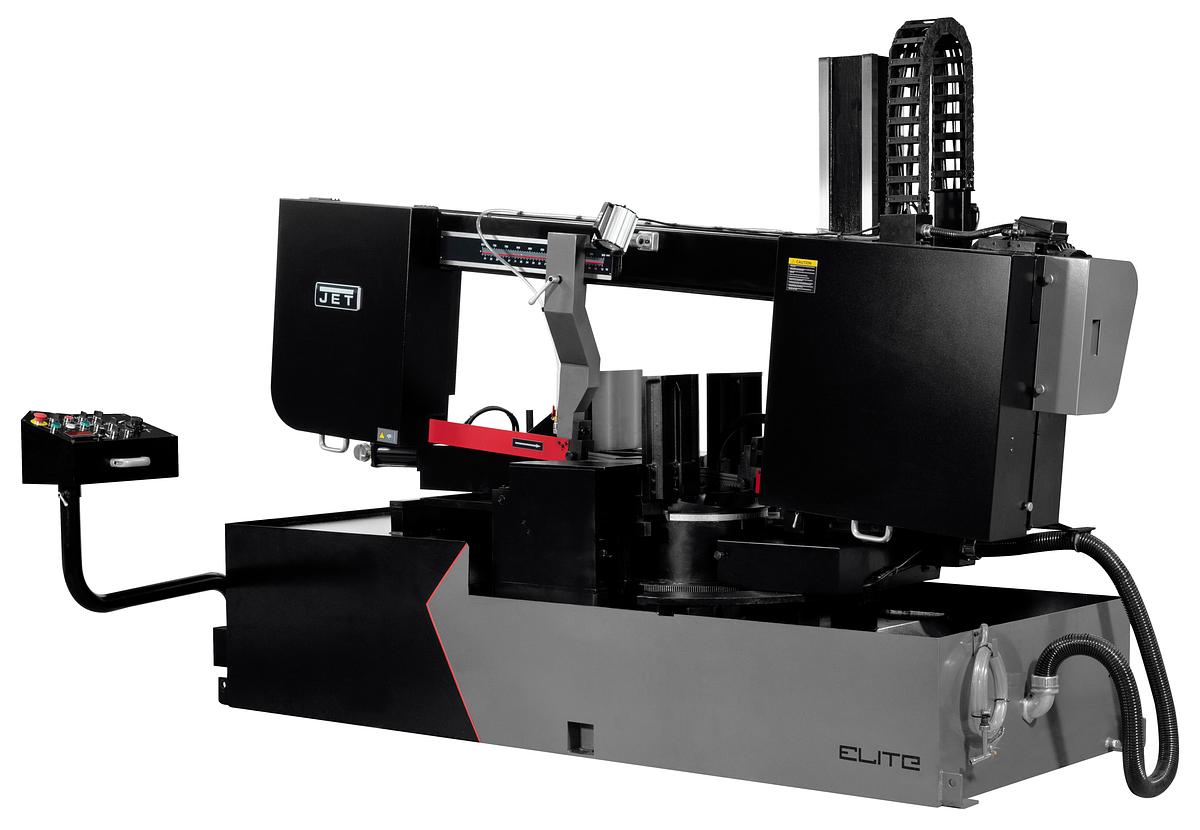

ECB-1833DMEVS-230, 18 x 31" Semi-Automatic Dual Mitering EVS Bandsaw 230V, 3Ph

or
Call (954)444-4004

Description

With features unmatched, the JET Dual Mitering , Semi-Automatic, EVS Bandsaw is the perfect solution for cutting structural steel with ease.


  • Electronic variable speed from 50-297 SFPM
  • Heavy duty construction reduces vibration and deflection
  • Hydraulic assist descent control
  • Auto table swivel
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Semi-auto on saw bow lifting and hydraulic vise
  • Swing away control box allows Operator to use in any position

    • Show All

    Specifications

    ManufacturerJettools
    ModelECB-1833DMEVS-230
    ConditionNew
    Stock NumberJT9-891170
    Bed Height (In.)33-15/32
    Blade Length (In.)240
    Blade Speed (SFPM)150-300
    Blade Speeds (SFPM)50 - 300
    Blade Wheel Diameter (In.)22-53/64
    Cutting Capacity (W x D) (In.)18 x 33
    DriveEVS
    Electrics7-1/2HP, 230V, 3Ph
    Floor Space Required (In.)110 x 74 x 82-5/8
    Maximum Vise Opening (In.)31-1/2
    Motor (HP)7-1/2
    Overall Dimensions (L x W x H) (In.)110 x 75 x 83
    Overall Height (In.)82-5/8
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)18 x 20-13/16
    Rectangle at 60 Degrees (In.)18 x 14-29/32
    Rectangle at 90 Degrees (In.)18 x 31-1/2
    Round at 45 Degrees (In.)18
    Round at 60 Degrees (In.)18
    Round at 90 Degrees (In.)15
    Shipping Weight (Lbs.)5500
    Square at 45 Degrees (In.)18 x 18
    Square at 60 Degrees (In.)15 x 15
    Square at 90 Degrees (In.)18 x 18
    Throat Depth (In.)18
    Warranty3 Year Elite
    Gross Weight5500.0
    Net weight5060.0
    Blade Size (In.)1.61 x 0.051 x 240
    Coolant Pump Motor1/8HP, 230V, 3PH
    Mitering Angle Motor1/5HP, 460V, 3Ph
    Oil Pump Motor1HP, 230V, 3Ph
