8 x 13 Variable Speed Bandsaw | EHB-8VS

or
Call (954)444-4004

Description

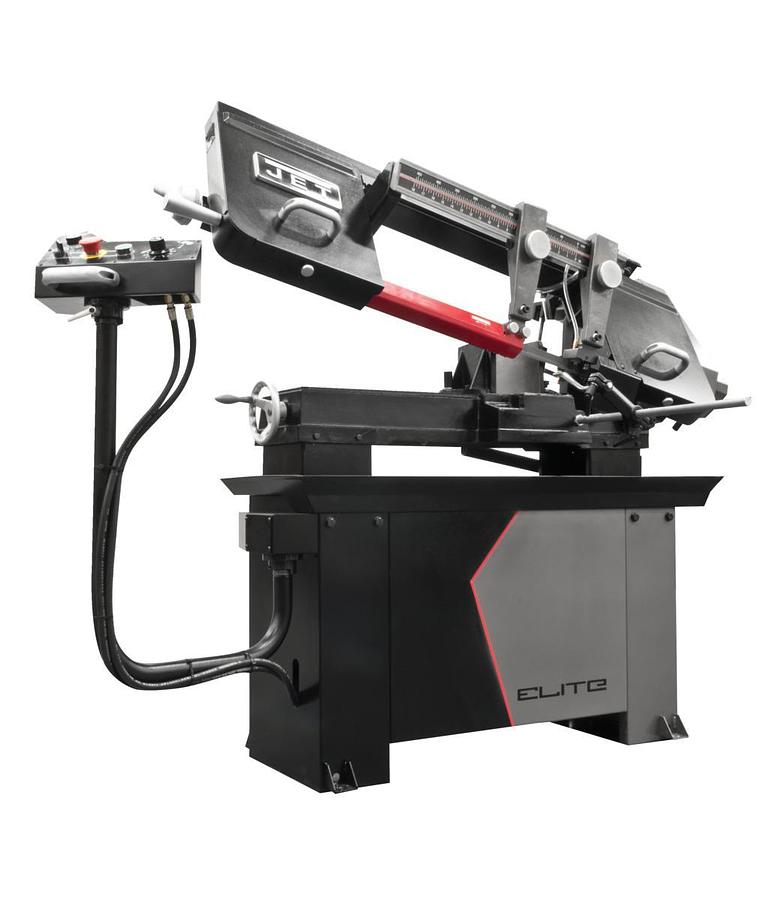

JET EHB-8VS 8"x13" Variable-Speed Horizontal Bandsaw (891015)

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility, are counted on to last longer, and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.


  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Quick positioning vise for clamping of materials
  • The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 32 in.
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life
  • Variable speed drive train allows operator to fine tune the blade speed fast and easily

    • Show All

    Specifications

    ManufacturerJettools
    ModelEHB-8VS
    ConditionNew
    Stock NumberJT9-891015
    Amperage Draw @ 115V 1Ph23
    Bed Height (In.)32
    Blade Length (In.)114-1/2
    Blade Speed (SFPM)82-310
    Blade Speeds (SFPM)82 - 310
    Blade Wheel Diameter (In.)11-5/8
    DriveVariable Speed
    Electrics1-1/2HP, 115/230V, 1-Phase
    Head Movement (Deg.)0
    Motor (HP)1-1/2 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)62-1/2 x 23 x 48
    Prewired Voltage (V.)115
    Prop 65Cancer
    Rectangle at 45 Degrees (In.)8 x 8 or 2 x 9-1/2
    Rectangle at 90 Degrees (In.)13 x 5-1/4 / 13-1/4 x 2
    Round at 45 Degrees (In.)8
    Round at 90 Degrees (In.)8
    Shipping Weight (Lbs.)770
    Square at 45 Degrees (In.)8 x 8
    Vise Swivels (Deg.)45
    Warranty3 Year Elite
    Gross Weight770.0
    Net weight680.0
    Blade Size (In.)1 x 0.35 x 114-1/2
