Description

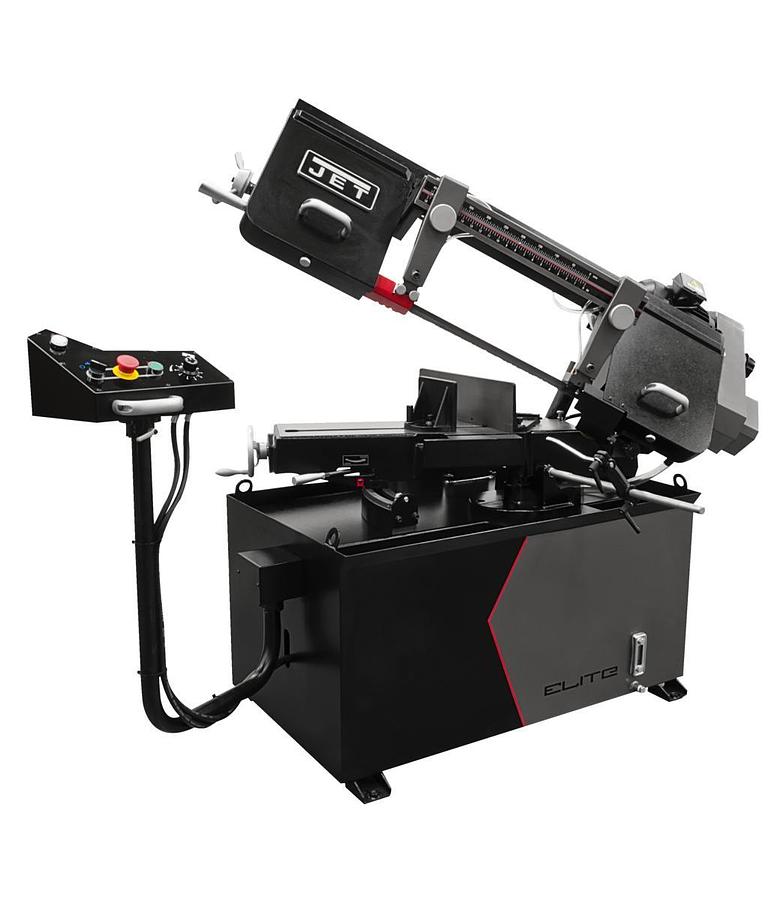

EHB-8VSM, 8 x 13 Variable Speed Mitering Bandsaw

A new legacy of saws. Saws that need to demonstrate new kinds of flexibility are counted on to last longer and operate more safely at the same time. Mitering and dual mitering bring an added level of capabilities. All saws come standard with variable speed to fine tune the blade speed fast and easily. Table heights have been optimized, and a completely redesigned swing away control panel. These are the most precise, most durable, and safest bandsaws you could ever put into your shop.


  • Adjustable Material Stop
  • Automatic blade shut off switch stops the sawing process
  • Built-in, self-propelled chip brush prevents chip build up in blade guides
  • Integrated pressurized wash hose for easy machine cleaning
  • Large handwheel with blade tensioning gauge accurately measures blade pressure
  • Mitering allows for angle cuts up to 45° right
  • Quick positioning vise for clamping of materials
  • The ELITE swing away panel relocates saw controls to a single location, offering finger-tip operation of most major saw functions
  • To reduce user fatigue and increase safety of the worker, we increased the saw bed height to up to 30 in.
  • Tungsten carbide blade guides with precision bearings, stabilizes the blade for increased accuracy and extends blade life

    • Show All

    Specifications

    ManufacturerJettools
    ModelEHB-8VSM
    ConditionNew
    Stock NumberJT9-891020
    Amperage115V: 18A/230V: 9A
    Amperage Draw @ 115V 1Ph23
    Bed Height (In.)30
    Blade Length (In.)114-1/2
    Blade Speed (SFPM)82-310
    Blade Speeds (SFPM)82 - 310
    Blade Wheel Diameter (In.)11-5/8
    DriveVariable Speed
    Electrics1/2HP, 115/230V/ 1Ph Prewired 115V
    Head Movement (Deg.)45
    Motor (HP)1-1/2 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)62-1/2 x 23 x 48
    Prewired Voltage (V.)115
    Prop 65Cancer
    Rectangle at 45 Degrees (In.)8 x 8 or 2 x 9-1/2
    Rectangle at 90 Degrees (In.)13 x 5-1/4 / 13-1/4 x 2
    Round at 45 Degrees (In.)8
    Round at 90 Degrees (In.)8
    Shipping Weight (Lbs.)792
    Square at 45 Degrees (In.)8 x 8
    Vise Swivels (Deg.)45
    Warranty3 Year Elite
    Gross Weight880.0
    Net weight770.0
    Blade Size (In.)1 x .035 x 114-1/2
