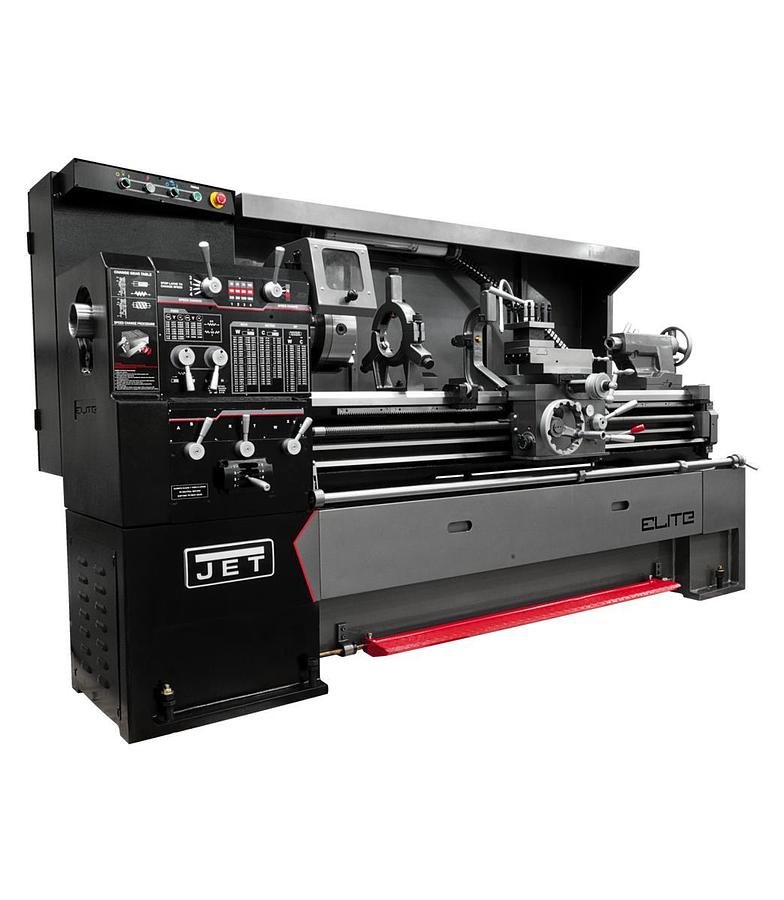

EGH-1740 With Newall DP700 DRO
Description
EGH-1740 With Newall DP700 DRO
Dependable, reliable, quality. Combining the durability and strength of Meehanite® castings with precision engineering, Elite Geared Head Lathes turn out high quality components turn after turn. Fully lit with CNC style lighting, the enclosed full-length splash guard is expertly designed to contain all chips and coolant. Hardened and ground bedways and gears help reduce vibration, deflection, and provide accurate longitudinal movements. Designed with a universal gearbox to allow for a wide range of threading without gear changes, and Turcite-B coatings between the bed and carriage to provide smooth and accurate movement, these machines provide the perfect blend of performance and reliability you can come to expect from JET Elite.
Specifications
| Manufacturer | Jettools |
| Model | EGH-1740 |
| Condition | New |
| Stock Number | JT9-892511 |
| Amperage Draw @ 230V 3Ph | 22 |
| Amperage Draw @ 460V 3Ph | 11 |
| Compound Slide Travel (In.) | 6-2/7 |
| Diametral Pitch Threads Number | 21.0000 |
| Drive | Geared Head |
| Length of Gap (In.) | 7-2/3 |
| Max Tool Size (In.) | 1 x 1 |
| Modular Pitch Threads Number | 18.0000 |
| Number of Inch Threads | 45.0000 |
| Number of Metric Threads | 39.0000 |
| Number of Spindle Speeds | 12 |
| Overall Dimensions (L x W x H) (In.) | 94 x 44 x 68 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.00075 - 0.02 |
| Range of Inch Threads (TPI) | 2 - 72 |
| Range of Longitudinal Feeds (IPR) | 0.0015 - 0.04 |
| Range of Metric Threads | 0.2 - 14 |
| Range of Spindle Speeds (RPM) | 36 - 1,800 |
| Size | 17 x 40 |
| Spindle Bore (In.) | 3-1/8 |
| Spindle Mount | D1-6 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 3/8 - 6-3/4 |
| Style (Type) | Engine |
| Swing Over Bed (In.) | 17 |
| Swing Over Cross Slide (In.) | 11 |
| Tailstock Spindle Travel (In.) | 5 |
| Warranty | 3 Year Elite |
| Width of Bed (In.) | 12 |
| Gross Weight | 4409.0 |
| Net weight | 3748.0 |
