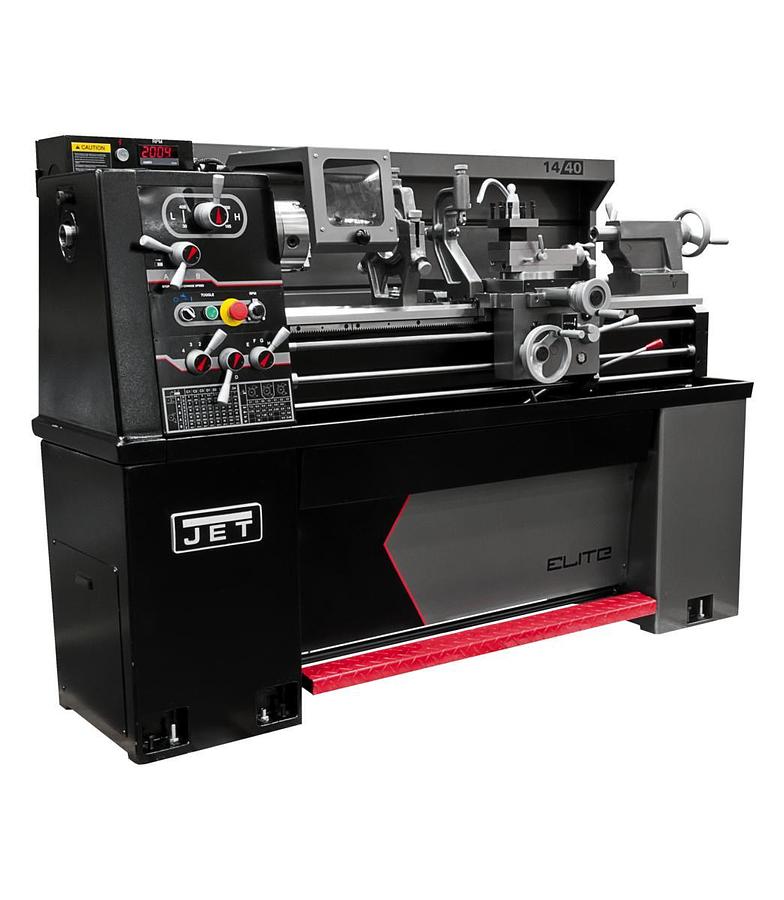

E-1440VS With ACU-RITE 303 CSS DRO
Description
E-1440VS With ACU-RITE 303 CSS DRO
Compact, powerful, perfection. Elite EVS lathes pack large features into compact footprints that make them perfect for schools, small shops, and engineering labs. Featuring certified Meehanite® castings, an electro-magnetic brake, three jaw chuck, ball bearing-mounted steady and follow rests, and CNC Style Lighting with enclosed splash guard, these lathes are truly Elite! CSA/CUS Certified.
Specifications
| Manufacturer | Jettools |
| Model | E-1440VS |
| Condition | New |
| Stock Number | JT9-892465 |
| Amperage Draw @ 230V 3Ph | 9 |
| Compound Slide Travel (In.) | 4 |
| Cross Slide Travel (In.) | 7 |
| Drive | EVS |
| Length of Gap (In.) | 9 |
| Motor (HP) | 3 HP, 230V, 3Ph |
| Number of Inch Threads | 40.0000 |
| Number of Longitudinal and Cross Feed Rates | 80 |
| Number of Metric Threads | 22.0000 |
| Overall Dimensions (L x W x H) (In.) | 77 x 30 x 58 |
| Prop 65 | Cancer and Reproductive Harm |
| Range of Cross Feeds (IPR) | 0.0003 - 0.01 |
| Range of Inch Threads (TPI) | 4 - 112 |
| Range of Longitudinal Feeds (IPR) | 0.0012 - 0.0294 |
| Range of Metric Threads | 0.45 - 7.5 |
| Range of Spindle Speeds (RPM) | 0 - 2,200 |
| Size | 14 x 40 |
| Spindle Bore (In.) | 1-1/2 |
| Spindle Mount | D1-4 |
| Spindle Taper with Sleeve | MT-5 |
| Steady Rest Capacity (In.) | 1/4 - 2-3/4 |
| Style (Type) | ELITE EVS |
| Swing Over Bed (In.) | 14 |
| Swing Over Cross Slide (In.) | 8-5/8 |
| Swing Through Gap (In.) | 20 |
| Tailstock Spindle Travel (In.) | 4-3/4 |
| Taper in Tailstock Spindle | MT-3 |
| Warranty | 3 Year Elite |
| Width of Bed (In.) | 8-1/2 |
| Gross Weight | 1940.0 |
| Net weight | 1653.0 |
