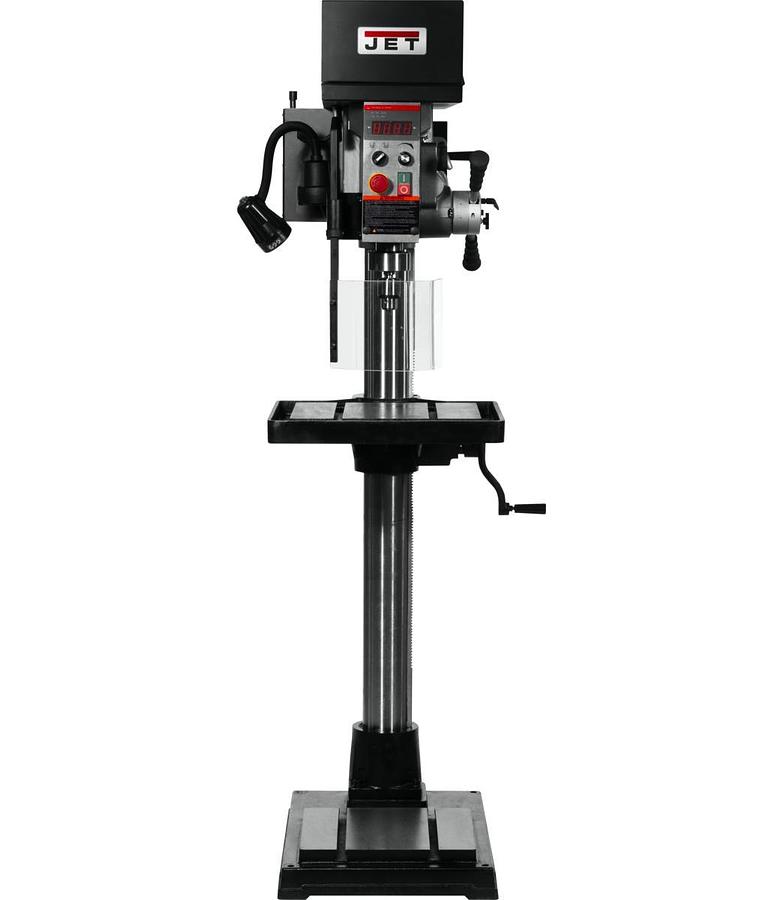

JDPE-20EVSC-PDF, 20-Inch EVS Drill Press with Power Downfeed, Clutch, 2HP, 1Ph 115V
Description
The JET JDPE-20EVSC-PDF 1-1/4" Drilling Capacity, 115V, 1Ph Electronic Variable Speed Drill with Clutch Speed Change system and Power Downfeed
The 20'' JET JDPE-20EVS-PDF Drill Press produces high torque at all speeds in both forward and reverse necessary for a wide range of operations. Spindle is supported by high quality ball bearings reducing rotational friction while increasing load support. Engineered to maximize output, the 20’’ EVS Drill Press includes a three-speed power down feed for heavy drilling applications and capable of running various spindle speeds from 50 to 2000 RPMs. CSA/CUS Certified.
Specifications
| Manufacturer | Jettools |
| Model | JDPE-20EVSC-PDF |
| Condition | New |
| Stock Number | JT9-354251 |
| Base Dimensions (In.) | 17.7 x 25-1/2 |
| Base Work Table (In.) | 14-3/16 x 13 |
| Column Diameter (In.) | 4 |
| Distance Column to Spindle (In.) | 26-1/2 |
| Drilling Capacity Cast Iron (In.) | 1-1/4 |
| Drilling Capacity Mild Steel (In.) | 1-1/8 |
| Drills to Center of Circle (In.) | 10 |
| Inverter Type | JET Exclusive |
| Inverter Type / Power Source | 2HP/115V/1PH |
| Motor (HP) | 1.5HP, 230V, 3PH |
| Overall Dimensions (L x W x H) (In.) | 32-3/5 x 22-2/3 x 70-25/64 |
| Prop 65 | Cancer and Reproductive Harm |
| Quill Diameter (In.) | 2.16 |
| Spindle Distance to Base (In.) | 48-1/4 |
| Spindle Distance to Table (Max.) (In.) | 46.85 |
| Spindle Taper (In. x TPI) | MT-3 |
| Spindle Travel Auto (In.) | 4-1/4 |
| Spindle Travel, Manual (In.) | 5 |
| Swing (In.) | 19-11/16 |
| T-Slots Number and Size (In.) | 2, 1/2 |
| Table Size (L x W) (In.) | 16-1/2 x 18-1/2 |
| Tapping Capacity Mild Steel (In.) | 5/8 |
| Warranty | 2 Year |
| Gross Weight | 582.0 |
| Net weight | 493.0 |
