JDP-20MF, 20" Floor Drill Press 115/230V 1Ph

or
Call (954)444-4004

Description

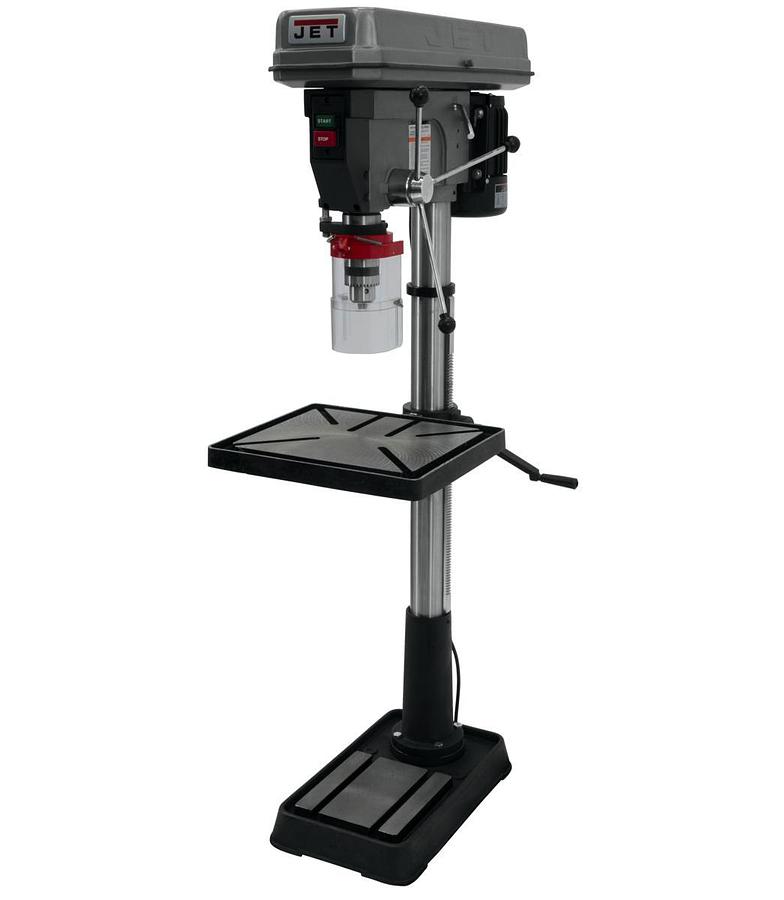

JET JDP-20MF 20" Drill Press, 115/230V 1Ph (354170)

Accuracy, stability and versatility are the benchmark features of the JET 15" and 20" Drill Presses. This high quality line of JET Drill Presses offer a greater range in spindle speeds than other machines of this class. JET backs their machines with the industry-leading Two Year Warranty.


  • 1/2" Dia. external depth stop with three nut locking feature for quick adjustment
  • Adjustable tension spindle return spring
  • Drill chuck and key included
  • Hinged metal belt and pulley cover
  • On/off switch located on front of drill press head
  • Quick adjustment motor mount for rapid changing of spindle speeds
  • Telescoping safety spindle guard

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDP-20MF
    ConditionNew
    Stock NumberJT9-354170
    Base Dimensions (In.)13-3/4 x 22-3/4
    Base Work Table (In.)13 x 8-1/2
    Column Diameter (In.)3-3/8
    Distance Column to Spindle (In.)10
    Drilling Capacity Cast Iron (In.)1
    Drilling Capacity Mild Steel (In.)3/4
    Drills to Center of Circle (In.)20
    Motor (HP)1-1/2 HP, 115/230V, 1Ph
    Number of Spindle Speeds12
    Overall Dimensions (L x W x H) (In.)33-1/2 x 18-1/2 x 67
    Prop 65Cancer and Reproductive Harm
    Range of Spindle Speeds (RPM)150 - 4,200
    Spindle Distance to Base (In.)46-3/4
    Spindle Distance to Table (Max.) (In.)29-1/8
    Spindle Taper (In. x TPI)MT-3
    Spindle Travel (In.)4-5/8
    Style (Type)Variable
    T-Slot Centers (In.)3-1/2
    T-Slots Number and Size (In.)6 and 1/2
    Table Size (L x W) (In.)18-1/2 x 16
    Table Travel (In.)21-1/2
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)80
    Gross Weight325.0
    Net weight282.0
