JDP-20VS-3, 1-1/2 Drilling Capacity, 2HP, 3 460V3Ph

or
Call (954)444-4004

Description

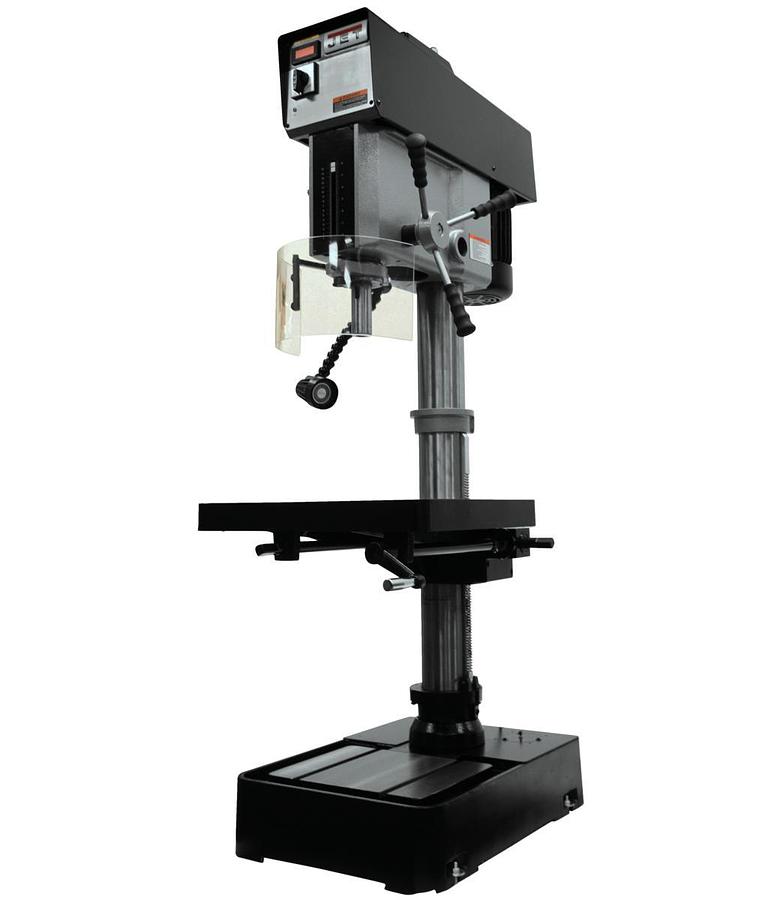

The JET JDP-20VS-3, 1-1/2 Drilling Capacity, 2HP, 3 460V 3Ph

Solid design and construction deliver precision operation and control. JET 20” Variable Speed Drill Presses combine variable speed spindles with a massively constructed head that increases accuracy and rigidity. That’s all on top of a steel column and a heavy-duty cast iron base.


  • CSA/CUS Certified
  • Front Mounted LED Spindle RPM Readout
  • Front mounted positive control depth stop
  • Head is massively constructed for more accuracy and rigidity & heavy duty cast iron design
  • Drill Chuck not included
  • Large Hand Grips designed with the users comfort in mind
  • Large precision ground T-Slot production table for easy set ups
  • Massive 3" quill diameter
  • Table rotates 360° around the column
  • Variable spindle speeds

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDP-20VS-3
    ConditionNew
    Stock NumberJT9-354231-4
    Base Dimensions (In.)27 x 19
    Column Diameter (In.)4-1/2
    Drilling Capacity Cast Iron (In.)1-1/2
    Drilling Capacity Mild Steel (In.)1-3/8
    Drills to Center of Circle (In.)20
    Motor (HP)2HP, 230/ 460V,3ph ,4P
    Overall Dimensions (L x W x H) (In.)38.18 x27.16 x79.52
    Prop 65Cancer and Reproductive Harm
    Range of Spindle Speeds (RPM)300 - 2,000
    Spindle Distance to Base (In.)44-1/2
    Spindle Distance to Table (Max.) (In.)30-1/4
    Spindle Taper (In. x TPI)MT-3
    Spindle Travel (In.)6
    Style (Type)Variable Speed
    T-Slot Centers (In.)7-7/16
    Table Size (L x W) (In.)22x18-3/4
    Table Travel (In.)20
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)154
    Gross Weight780.0
    Net weight780.0
