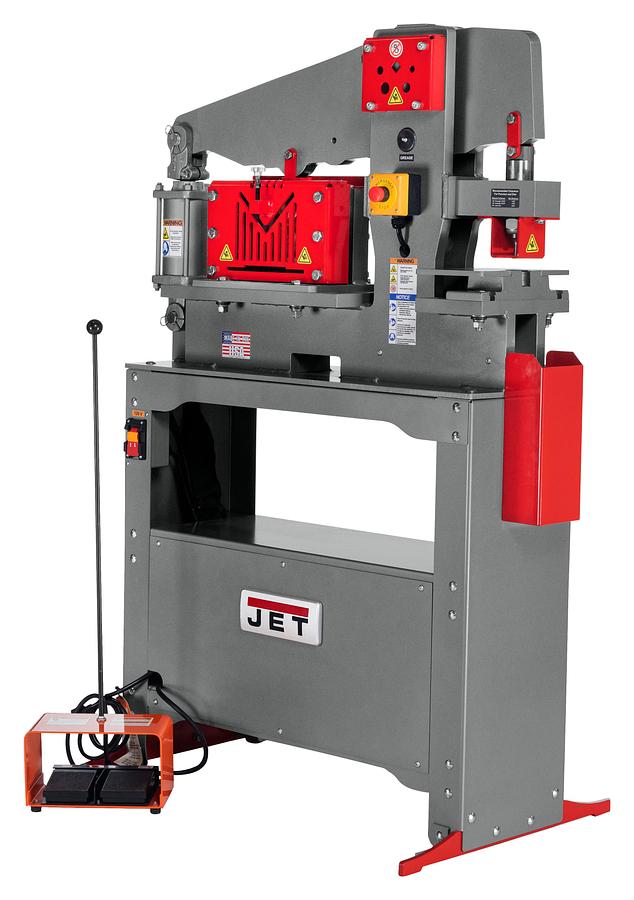

45 Ton Ironworker | JIW-45T
Description
The JET 45 Ton Ironworker delivers 4 workstations to provide solutions to users needs, with a Punch workstation, a combination Flat Bar Shear and Angle Shear, and an integrated 7-size Rod Shear. Small and with a compact footprint, this Ironworker also includes a Punch & Die Holder and Slug Receptacle to keep the users work area clean and organized. This sturdy and tough Ironworker is Made in the USA and back by the JET RED Assurance 2-Year warranty.
Specifications
| Manufacturer | Jettools |
| Model | JIW-45T |
| Condition | New |
| Stock Number | JT9-756100 |
| Angle Shear Max Capacity 1/4" | 3 x 3 |
| Angle Shear Max Capacity (In.) | 3 x 3 x 1/4 |
| Cylinder (In) | 3-1/2" Ram |
| Flat Bar Shear Max Capacity 1/4" | 8 |
| Flat Bar Shear Max Capacity 3/8" | 4 |
| Flat Bar Shear Rating (Tons) | 45 |
| Flat Bar Shear Work Height (In.) | 40 |
| Motor Amps | 14 |
| Motor (HP) | 1-1/2 HP, 115V, 1Ph |
| Motor Speed (RPM) | 3500 |
| Overall Dimensions (L x W x H) (In.) | 40 x 24 x 58 |
| Overall Height (In.) | 58 |
| Prop 65 | Cancer and Reproductive Harm |
| Punch Max Capacity (In.) | 1 diam. In. 1/2 mild steel |
| Punch Rating (Tons) | 45 |
| Punch Stroke (In.) | 1-1/2 |
| Punch Work Height (In.) | 41 |
| Rating (Tons) | 45 |
| Rod Shear Max Round (In) | 3/4 |
| Rod Shear Max Square (In) | 5/8" |
| Rod Shear Work Height (In) | 54 |
| Shipping Dimensions (L x W x H) (In.) | 51 x 45 x 64 |
| Valve Pressure (PSI) | 2800 |
| Warranty | 2 Year |
| Gross Weight | 802.0 |
| Net weight | 698.0 |
| Throat Depth (In.) | 5-3/4 |
