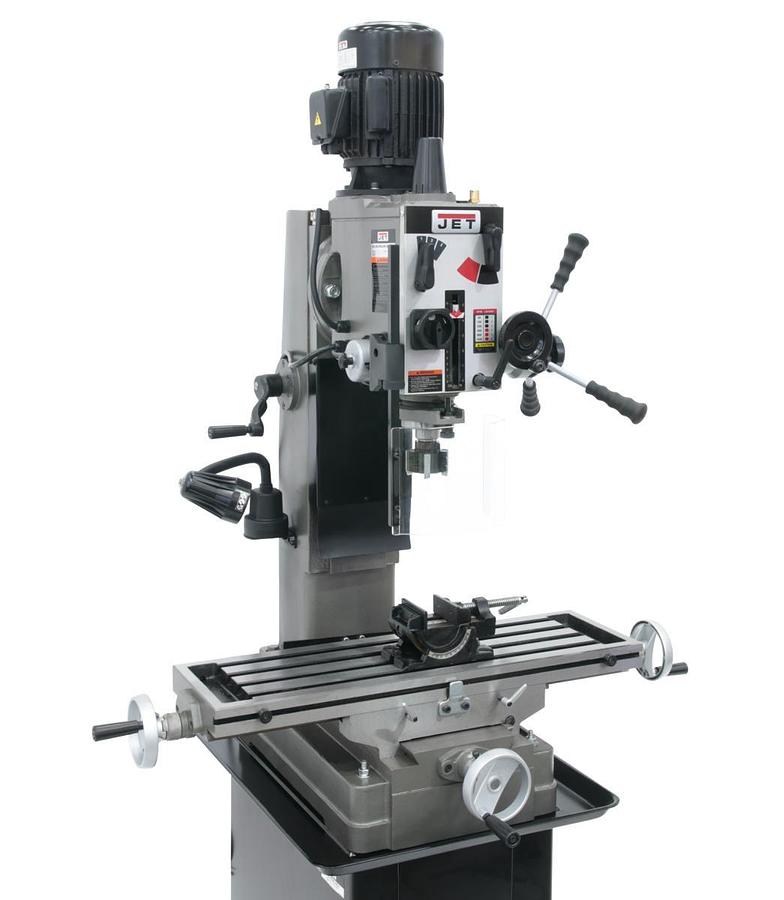

JMD-45GH Geared Head Square Column Mill/Drill with Newall DP700 2-Axis DRO & X-Powerfeed

The heavy-duty JMD-45GH Square Column Geared Head Mill Drill is engineered to deliver the rigidity needed to perform a variety of precision drilling applications in high intensity environments.


  • Calibrated fine down feed built in
  • CSA/CUS Certified
  • Easy to read internal depth gauge
  • Full power to the cutting tools through 6 speed geared head
  • Heavy-duty design allows for a variety of precision drilling applications
  • Mill Drill Stand, p/n 350045, shown in some images, is optional
  • Milling table allows for movement
  • R8 spindle allows use of all mill tooling
  • Rapid spindle speed changes through quick-select gear shift levers
  • Square column with dovetail ways

    • Show All

    Specifications

    ManufacturerJettools
    ModelJMD-45GH
    ConditionNew
    Stock NumberJT9-351151
    Base Dimensions (In.)26-11/16 x 15-15/16
    Face Mill Capacity (In.)4
    Max Distance Spindle to Table (In.)18-1/8
    Motor (HP)1-1/2HP, 115/230V, 1Ph
    Number of Spindle Speeds6
    Overall Dimensions (L x W x H) (In.)29 x 36 x 50
    PowerfeedX-Powerfeed
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3
    Range of Spindle Speeds (RPM)65-1550
    Spindle Taper (In. x TPI)R8
    Spindle Travel (In.)5
    Swing (In.)19-11/16
    Table Longitudinal Travel (In.)20-1/2
    Table Size (L x W) (In.)9-1/2 x 32-1/4
    Warranty2 Year
    Gross Weight794.0
    Net weight728.0
