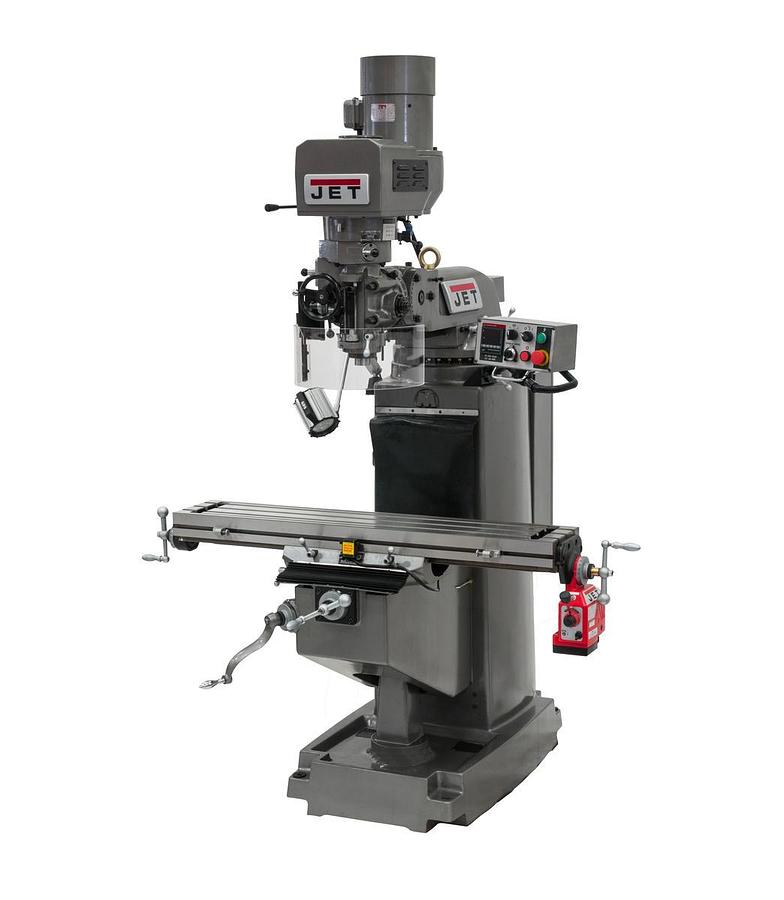

JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller

or
Call (954)444-4004

Description

JTM-1050EVS2/230 Mill With 3-Axis Acu-Rite MilPwr G2 CNC Controller

JET offers complete, factory-installed CNC packages with your choice of 2- or 3-axis CNC controls. The Computer Numerical Control system brings the added precision of digital automation to the process, allowing the user greater control and efficiency. Meehanite® casted JET Vertical Mills with CNC packages deliver accurate results every time. Menu-prompted conversational programming to easily create part programs, edit, reverse, change, delete, and copy or move steps. Simply follow the menu prompts and let MILLPWR G2 do the rest. Handwheels included for manual operation. All the features you've come to expect backed by the industry-leading JET Two Year Warranty.


  • 12.1" High resolution display (1024 x 768) with 3D graphics
  • Available offline software
  • Built-in calculator: Performs standard, trig, and geometry calculations and transfers them directly into part programs
  • Closed loop feedback using Acu-Rite precision linear encoders with 0.00005" resolution
  • CNC electronic variable speed vertical milling machine package for JTM-1050EVS
  • Estimated run time feature
  • Jog Control allows table movement, quickly from one location to another - using one axis at a time or any two axes simultaneously
  • Powerful DC Servo motor assemblies that include mounting castings and hardware
  • Precision ground ball screws eliminate backlash for precise lateral movements
  • USB + Ethernet compatible

    • Show All

    Specifications

    ManufacturerJettools
    ModelJTM-1050EVS2/230
    ConditionNew
    Stock NumberJT9-690676
    CNC PackageACU-RITE MILLPWR® G2
    Collet Capacity1/8 - 7/8
    Column Width (In.)20
    Distance Spindle to Column (Max.) (In.)26-3/4
    Inverter TypeDelta, B
    Max Distance Spindle to Table (In.)20-3/4
    Motor (HP)3 HP, 230V, 3Ph
    Number of Axis3
    Overall Dimensions (L x W x H) (In.)66 x 63 x 87
    Prop 65Cancer and Reproductive Harm
    Quill Diameter (In.)3-3/8
    Quill Down Feed Rates (IPR).0015 - .003 - .006
    Range of Spindle Speeds (RPM)60 - 4,500
    Saddle Width (In.)11-1/2
    Spindle Taper (In. x TPI)R-8
    Spindle Travel (In.)5
    Style (Type)CNC
    T-Slot Centers (In.)2-1/2
    Table Cross Travel (In.)14-3/4
    Table Longitudinal Travel (In.)35-1/3
    Table Longitudinal Travel With Powerfeed (In.)29-7/8
    Table Size (L x W) (In.)10 x 50
    Travel of Knee (In.)16-1/8
    Travel of Ram (In.)15-7/8
    Warranty2 Year
    Work Table Weight Capacity (Lbs.)840
    Gross Weight3100.0
    Net weight3100.0
