JDC-500 Bench Dust Collector 1/3HP, 115V, Single Phase

or
Call (954)444-4004

Description

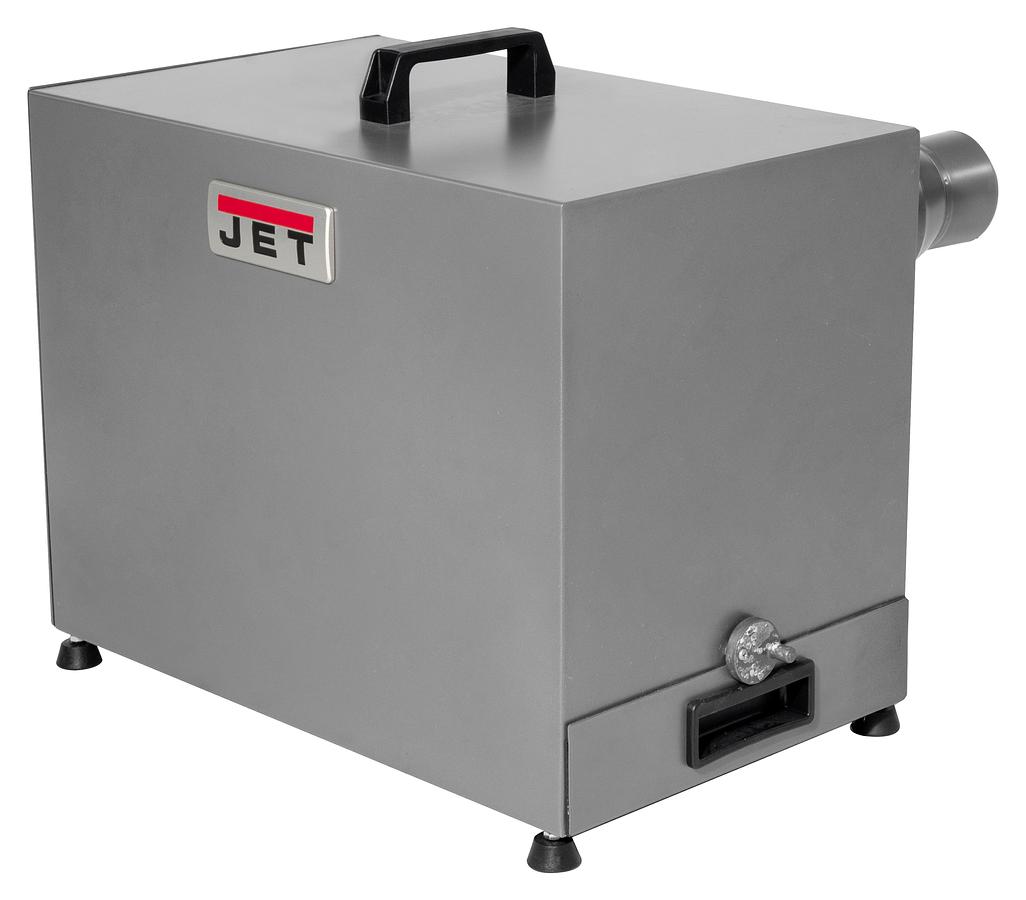

JET JDC-500B Bench Dust Collector, 1/3HP, 115V, Single Phase (414850)

JET's new Bench Dust Collector is great for collecting abrasive dust from Belt & Disc finishing and grinding machines in your home or small shop. Chips and dust collect into a metal drawer that is easy to clean. The convenient optional casters allow for use throughout your shop. Enhance the health and safety levels in your shop with JET.


  • CSA/US: Following strict guidelines and electrical requirements, this JET Industrial Dust Collector is CSA/US certified
  • Simple and easy to clean-out chip & dust drawer
  • Easy to change exhaust filter
  • All steel construction
  • Non-sparking aluminum housing and fan blade
  • Portable on 4 casters and 2 handles for ease of movement
  • Quite, effective dust collection method

    • Show All

    Specifications

    ManufacturerJettools
    ModelJDC-500B
    ConditionNew
    Stock NumberJT9-414850
    Dust Port Size (In.)3
    Filter Size (W x L x D) (In.)11-25/32 x 10-15/32 x 1-3/16 In.
    Maximum CFM490.0000
    Maximum Hose Velocity (SFPM)5610.0000
    Motor Amps3.5
    Motor PhaseSingle
    Motor Voltage (V.)115
    Overall Dimensions (L x W x H) (In.)30-5/8 x 20-7/8 x 29
    Prop 65Cancer and Reproductive Harm
    Sound Rating (Db.)75
    Style (Type)Dust Collector
    Warranty2 Year
    Gross Weight53.0
    Net weight47.0
    Air Flow (CFM) (High)176
    Filter EfficiencyMERV 13
    Inner Filter Efficiency (MERV)13
    Inner Filter MaterialAnti-spark/Fireproof
    Electrics1/3HP, 115V, 1Ph
    Filter TypeAnti-Spark / Fireproof
    Noise Level @ 3ft (Decibel dB) High/Medium/Low75
    Number of Ports1
    Port Size (in.) (with Adaptor)3
