J-4103 2 x 72 Square Wheel Belt Grinder 115V 1Ph

or
Call (954)444-4004

Description

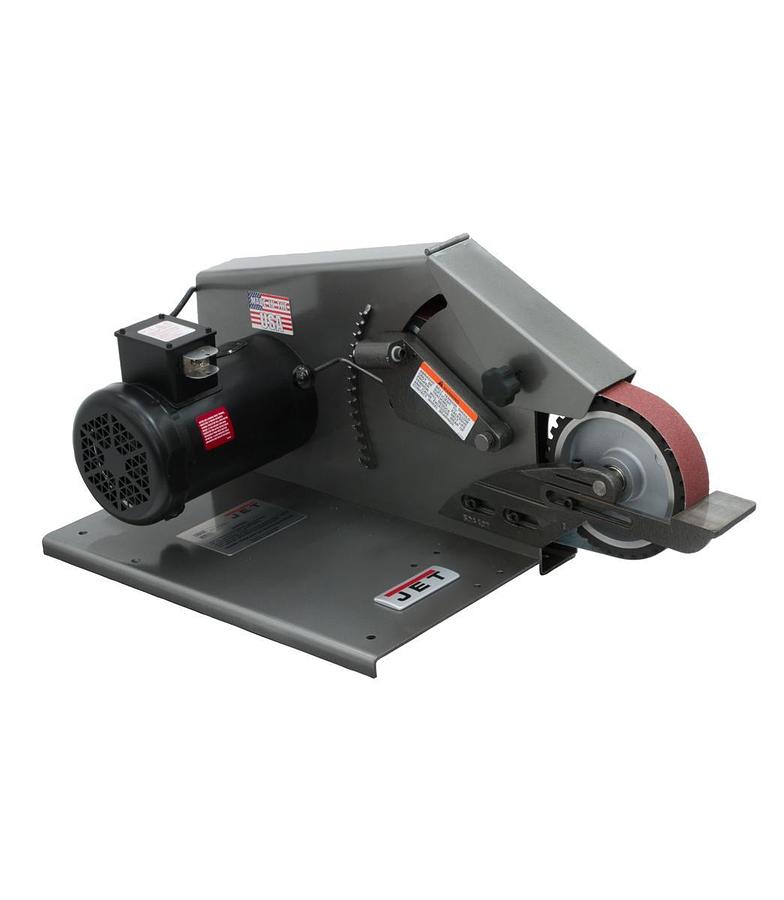

J-4103, 2 x 72 Square Wheel Belt Grinder 115V 1Ph

The JET Square Wheel Grinder is a belt grinder that uses a flat platen and idler wheels at each end to achieve a long, flat grinding surface. This innovative design permits grinding on the front wheel, which is square to the work and not crowned. The JET Square Wheel Belt Grinder will grind, deburr and chamfer with equal proficiency both internal/external on part, large and small. Manufactured in the USA by JET.


  • For grinding and refinishing cylindrical shapes
  • Grind difficult to reach areas with the 3" X 2" or 1-1/2" X 2" diameter contact wheels
  • MADE IN THE U.S.A.
  • Performs intricate contouring or internal finishing on uniquely shaped parts
  • Puts a satin finish on steel, iron or aluminum
  • Serrated contact wheel is used for removing heavy stock, cleaning up a weld or snagging a casting
  • Yoke surface conforms to shape of the surface to produce an even, smooth finish

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-4103
    ConditionNew
    Stock Number577000
    Belt Size (W x L) (In.)2 x 72
    Motor (HP)1 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)17 x 31 x 17
    Warranty2 Year
    Prop 65Cancer and Reproductive Harm
    Style (Type)Belt
    Gross Weight116.0
    Net weight116.0
