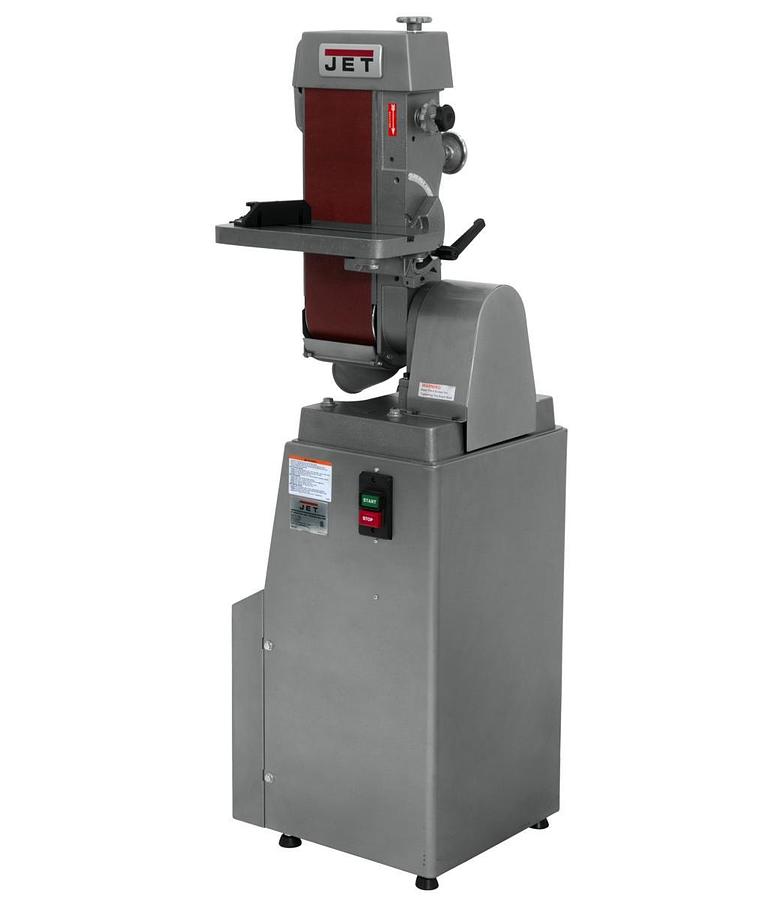

J-4301A, 6" x 48" Industrial Belt Finishing Machine 3Ph

or
Call (954)444-4004

Description

J-4301A, 6 x 48 Industrial Belt Finishing Machine 3Ph

This JET Industrial Belt Finishing Machine starts with a heavy-duty, one piece steel stand and miter gauge, but offers users so much more in the way of versatility for high-performance results. Variable position locks for both vertical and horizontal belt head adjustments, removable/adjustable heavy-duty cast iron platen and tilting table permit premium contour finishes, as well as plain and compound mitering. A sleek design means it fits anywhere on your shop floor.


  • Adjustable dust deflector and dust chute
  • Adjustable, heavy-duty, cast iron removable platen
  • Belt head adjusts vertically and horizontally
  • Completely enclosed drums and guarded sanding belt
  • Fine thread adjustments for simple and easy belt tracking
  • Removable upper belt guard for contour finishing
  • Table tilts 45° out and 20° in for all angle finishing operations
  • Variable position locks
  • Variable position locks, the belt head adjusts vertically and horizontally

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-4301A
    ConditionNew
    Stock NumberJT9-414601
    Belt Table Size (In.)7-3/8 x 14-3/4
    Belt Table Tilt (Deg.)45 Out, 20 In
    Motor (HP)1-1/2 HP, 230V, 3Ph
    Overall Dimensions (L x W x H) (In.)29 x 16 x 58
    Warranty2 Year
    Prop 65Cancer and Reproductive Harm
    Style (Type)Belt
    Table Slots (In.)5/8
    Gross Weight290.0
    Net weight215.0
