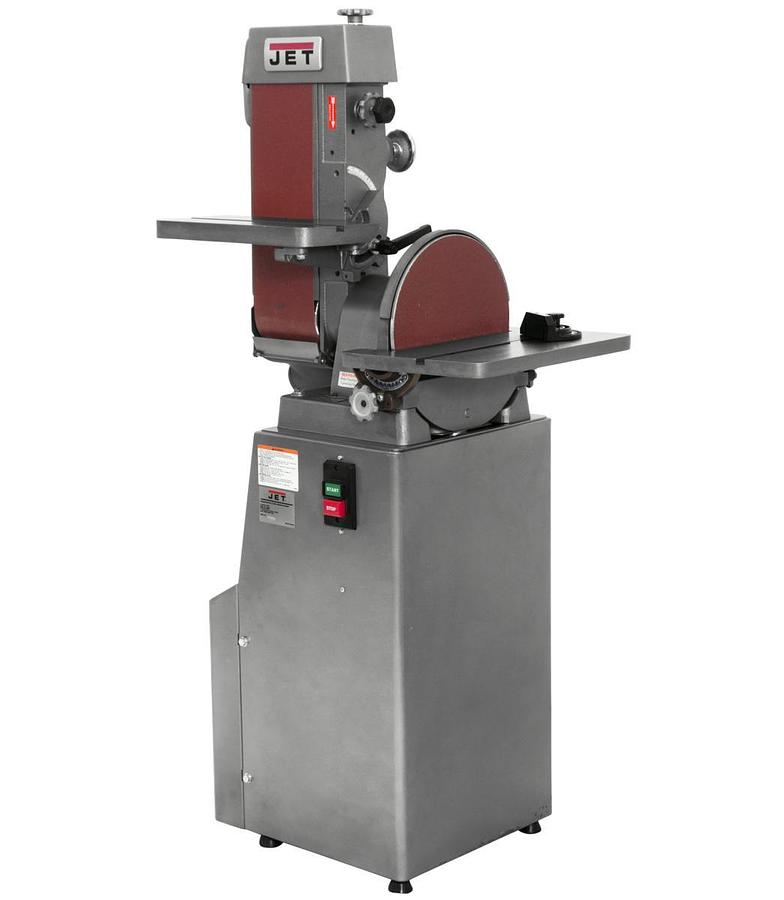

J-4202A, 6" x 48" Industrial Combination Belt and 12" Disc Finishing Machine 230V 3Ph

or
Call (954)444-4004

Description

J-4202A, 6 x 48 Industrial Combination Belt and Disc Finishing Machine 230V 3Ph

High-speed precision and amazing versatility. This rugged piece of equipment has a belt that operates at any angle, and conforms to curves, angles or circular finishing and grinding operations. Machinists who take great pride in their work prefer the JET Industrial Combination Belt & Disc Finishing Machine


  • 60 grit belt and disc standard on machine
  • Adjustable dust collector and dust chute
  • Belt head adjusts vertically and horizontally
  • Belt operates at any angle
  • Completely enclosed drums and guarded sanding belt
  • Fully machined, balanced disc
  • Large cast iron slotted table
  • Plain and compound miters are easily obtained by using the standard die cast aluminum miter gauge
  • Removable upper belt guard for contour finishing
  • Variable position locks

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-4202A
    ConditionNew
    Stock NumberJT9-414553
    Belt Table Size (In.)7-3/8 x 14-3/4
    Disc Diameter (In.)12.0000
    Belt Table Tilt (Deg.)45 Out, 20 In
    Motor (HP)1-1/2 HP, 230V, 3Ph
    Overall Dimensions (L x W x H) (In.)26 x 19 x 58
    Warranty2 Year
    Prop 65Cancer and Reproductive Harm
    Gross Weight320.0
    Net weight250.0
