HVBS-710S, 7" x 10-1/2" Horizontal/Vertical Mitering Bandsaw

or
Call (954)444-4004

Description

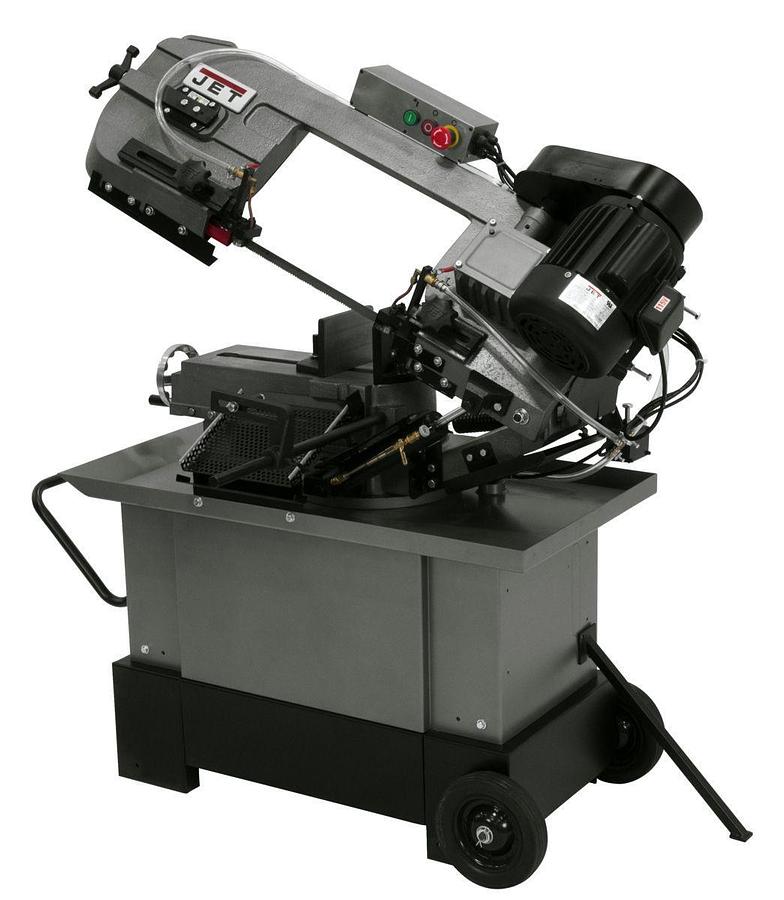

JET HVBS-710S, 7" x 10-1/2" Horizontal/Vertical Mitering Bandsaw (413451)

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.


  • Adjustable Material Stop
  • Built-in, self-propelled blade brush extends blade life
  • Fully adjustable hydraulic downfeed system
  • Hardened and ground drive shaft and worm gears transmit maximum torque to blade wheels
  • Heavy-duty cast iron saw bow and bed
  • Large 8" wheels and handle for easy movement
  • Mitering head swivels to cut any angle 0° - 45° while the work piece remains secured
  • Quick-positioning vise with fully adjustable jaws
  • Wheels and handle for easy movement

    • Show All

    Specifications

    ManufacturerJettools
    ModelHVBS-710S
    ConditionNew
    Stock NumberJT9-413451
    Bed Height (In.)23
    Blade Wheel Diameter (In.)11-3/4
    DriveBelt Drive
    Motor (HP)1 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)51 x 22-1/2 x 41
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)4-3/4 x 4
    Rectangle at 90 Degrees (In.)7 x 10-1/2
    Round at 45 Degrees (In.)4
    Round at 90 Degrees (In.)7
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight463.0
    Net weight396.0
