HBS-56S, 5" x 6" Horizontal Mitering Bandsaw

or
Call (954)444-4004

Description

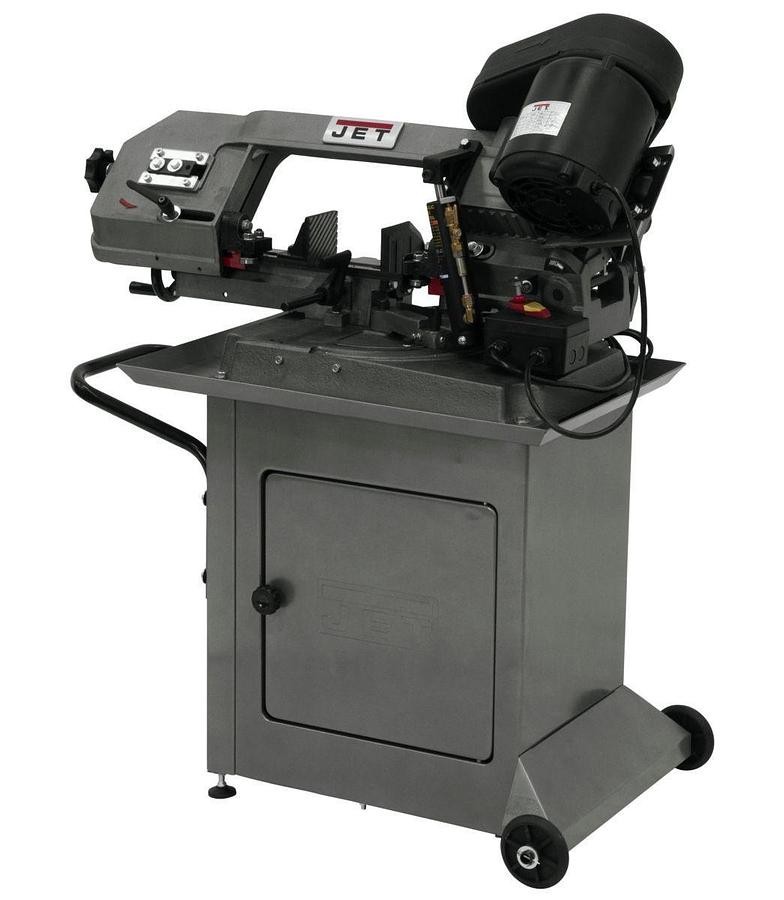

JET HBS-56S, 5"x6" Horizontal Dry Bandsaw (414457)

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.


  • Adjustable Material Stop
  • Ball bearing supported blade wheel
  • Deluxe enclosed stand with wheels and handle for easy movement
  • Fully adjustable hydraulic downfeed system
  • Mitering head swivels to cut any angle 0° - 60° while the work piece remains secured
  • Wheels and handle for easy movement

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-56S
    ConditionNew
    Stock NumberJT9-414457
    Bed Height (In.)28
    Blade Wheel Diameter (In.)7-3/8
    DriveBelt Drive
    Head Movement (Deg.)60°
    Motor (HP)1/2 HP, 115/230V, 1Ph
    Overall Dimensions (L x W x H) (In.)37 x 20-3/4 x 41
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)4 x 2-3/4 and 2 x 3-3/4
    Rectangle at 60 Degrees (In.)5 x 1-3/4
    Rectangle at 90 Degrees (In.)5 x 6 and 2 x 6-3/4
    Round at 45 Degrees (In.)3
    Round at 60 Degrees (In.)1-3/4
    Round at 90 Degrees (In.)5
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight176.0
    Net weight172.0
