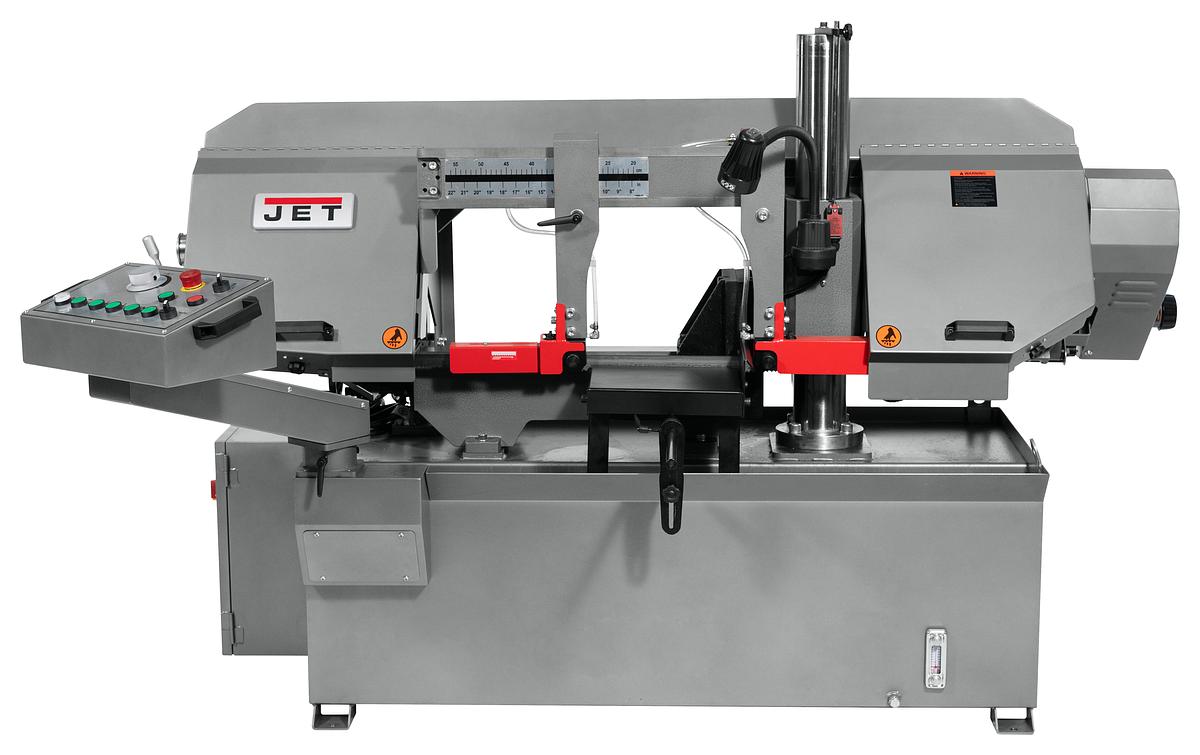

HBS1220DC, 12x20" Semi-Automatic Dual Column Bandsaw 3HP, 230/460V, 3 Phase

or
Call (954)444-4004

Description

JET Dual Column Bandsaw is great for cutting large parts while keeping the blade as straight as possible while the head is descending during the cut.


  • Heavy duty construction reduces vibration and deflection
  • Coolant is distributed through the blade guides through an integrated coolant system
  • Blade tension gauge helps to ensure the blade is in the correct cutting position
  • Built-in, self-propelled blade brush prevents chip build up in blade guides
  • Motor designed for continuous operation
  • Powerful gearbox for long life
  • Two column design for more productive cutting

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS1220DC
    ConditionNew
    Stock NumberJT9-413400
    Bed Height (In.)27
    Blade Length (In.)155-1/2
    Blade Speed (SFPM)95 - 295
    Blade Speeds (SFPM)86,157,228,330
    Blade Wheel Diameter (In.)16
    DriveMechanical Variable Speed
    Electrics3HP, 230/460V, 3Ph
    Motor (HP)3 HP, 230/460V, 1Ph
    Overall Dimensions (L x W x H) (In.)81 x 42-1/2 x 54-1/2
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 90 Degrees (In.)12 x 20
    Round at 90 Degrees (In.)12
    Shipping Weight (Lbs.)1628
    Square at 90 Degrees (In.)12
    Throat Depth (In.)12 x 12
    Warranty2 Year
    Gross Weight1740.0
    Net weight1420.0
    Blade Size (In.)1-1/8 x 0.043 x 155-1/2
    Coolant Pump Motor1/8HP, 230/4660V, 3Ph
    Oil Pump Motor1HP, 230/460V, 3Ph
