J-9180-3, 7" Zip Miter Horizontal Bandsaw

or
Call (954)444-4004

Description

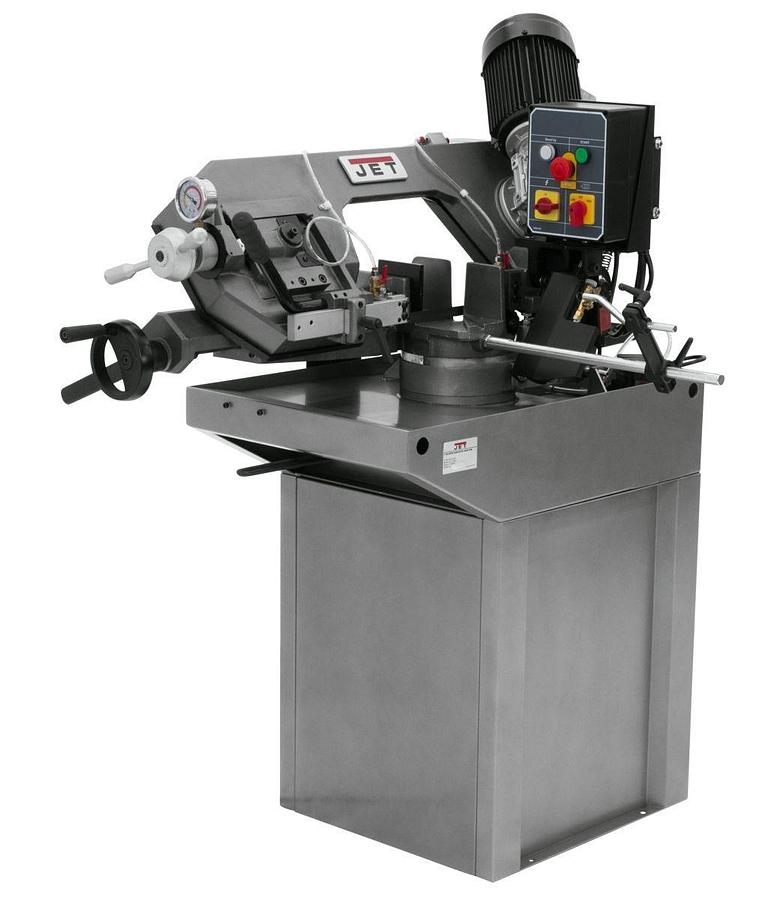

J-9180-3, 7" Zip Miter Horizontal Bandsaw 230V 3Ph

JET Mitering Horizontal bandsaws unique design features a swiveling head while the base remains stationary. This allows the stock to remain same position while making accurate crosscuts and miters. Backed by the industry leading two year warranty, JET Mitering Bandsaws are built to last and deliver precision results.


  • Adjustable blade guides that utilizes cam follower bearings mounted on eccentric shafts
  • Adjustable Material Stop
  • Convenient control panel with overload protection
  • Fully adjustable hydraulic downfeed system
  • Heavy-duty cast iron saw head and sturdy base
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Mitering head swivels to cut any angle 0° - 60° while the work piece remains secured
  • Quick positioning vise reduces set-up time

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-9180-3
    ConditionNew
    Stock NumberJT9-414464
    Blade Wheel Diameter (In.)10-1/2
    DriveGeared Head
    Head Movement (Deg.)60°
    Motor (HP)1 HP, 230V, 3Ph
    Overall Dimensions (L x W x H) (In.)47 x 29 x 56-1/2
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)4-1/2 x 4-1/2
    Rectangle at 60 Degrees (In.)2-3/4 x 2-3/4
    Rectangle at 90 Degrees (In.)7-7/8 x 6
    Round at 45 Degrees (In.)4-1/2
    Round at 60 Degrees (In.)2-3/4
    Round at 90 Degrees (In.)7
    Warranty2 Year
    Gross Weight429.0
    Net weight385.0

    Documents
