J-7060, 12" x 20" Semi-Automatic Horizontal Bandsaw

or
Call (954)444-4004

Description

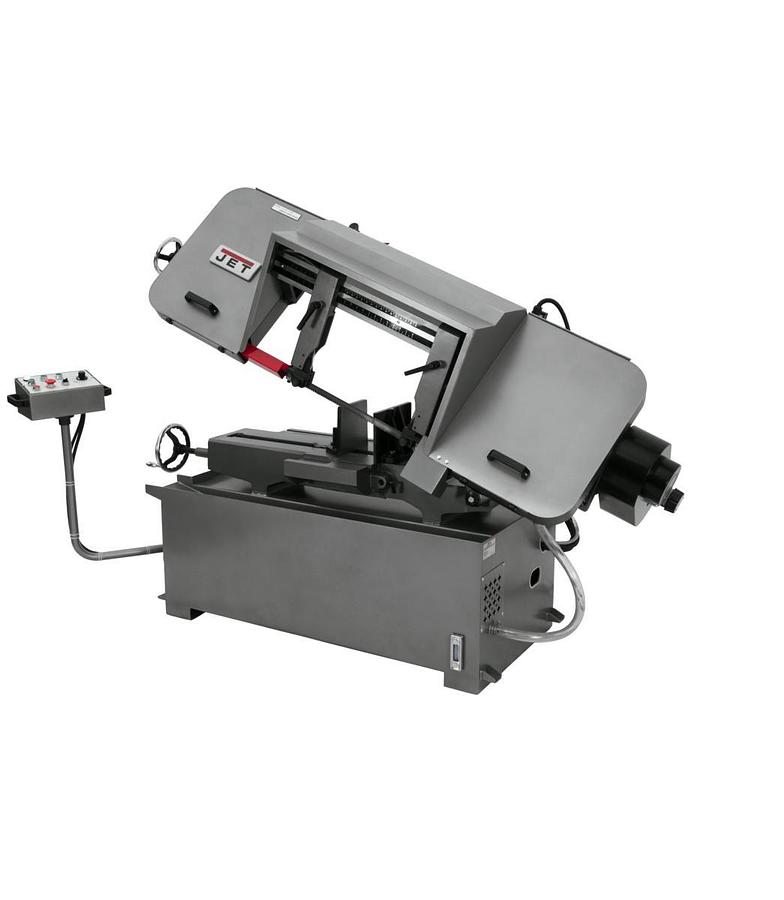

J-7060, 12" x 20" Semi-Automatic Horizontal Bandsaw 460V 3Ph

This JET large capacity variable speed semi-automatic horizontal bandsaw is loaded with features that allow the operator the ability to fine tune the blade speed easily and quickly on a convenient swing away control panel. The sturdy head raises automatically after each cut and cast iron band wheels give you the confidence of quality cuts, first time, every time.


  • Adjustable blade guide with six contact point system that utilizes cam follower bearings mounted on eccentric shafts on both sides of the blades
  • Adjustable Material Stop
  • Cast iron blade wheels
  • Downfeed system is controlled by a dual system of counterbalance springs working with a hydraulic cylinder
  • Heavy-duty transmission utilizes hardened and ground gears operating in an oil bath
  • Patented 3-Jaw vise with rapid action moveable jaw for faster set up
  • Swing away control panel houses major saw controls
  • Variable speed drive system

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-7060
    ConditionNew
    Stock NumberJT9-414476-4
    Blade Wheel Diameter (In.)17
    DriveVariable Speed
    Motor (HP)3 HP, 230V, 3Ph
    Overall Dimensions (L x W x H) (In.)87 x 37-1/2 x 53
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)12 x 12
    Rectangle at 90 Degrees (In.)12 x 20
    Round at 45 Degrees (In.)12
    Round at 90 Degrees (In.)12
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight1279.0
    Net weight1144.0
