J-3230, 5" x 8" Horizontal Bandsaw

or
Call (954)444-4004

Description

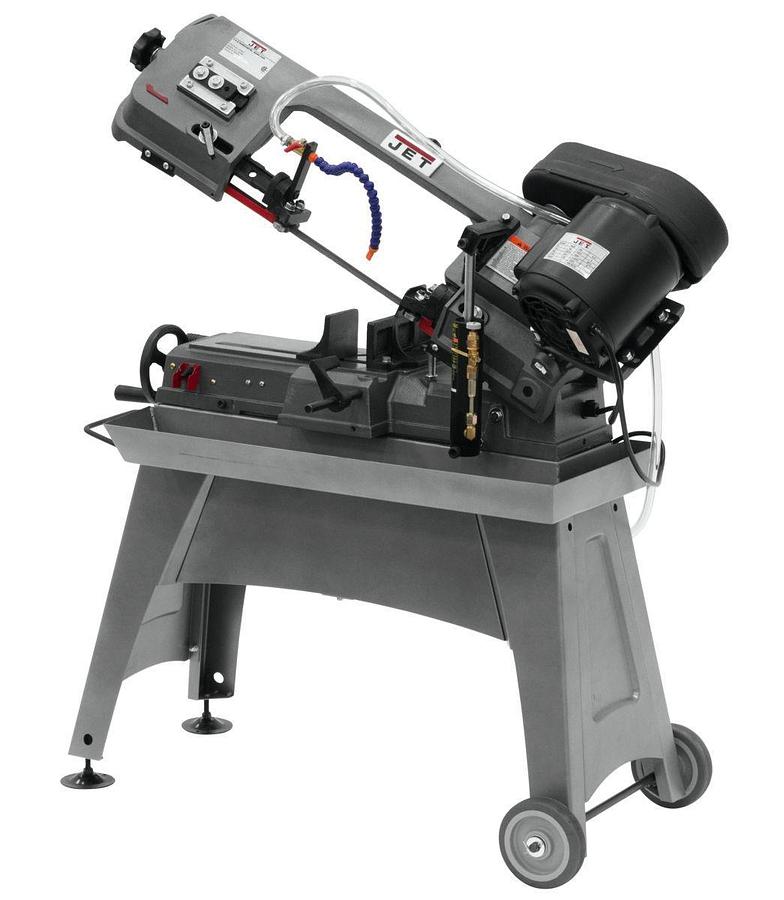

JET J-3230 5"x8" Horizontal Wet Bandsaw (414453)

Adjustable guides and hydraulic feed, steel worm gear and bronze drive gear, and auto shutoff at end of the cut are some of the features that makes this JET Hydraulic Band Saw a must for any professional machine shop. The built-in handle and wheels makes relocation within your workspace quick and easy.


  • Adjustable blade guides with side eccentric shaft with ball bearings with rear-ball bearings
  • Adjustable Material Stop
  • Blade drive is a steel, heat treated worm driving a bronze worm gear in an oil bath
  • Blade guides with side eccentric shaft with ball bearings
  • Fully adjustable hydraulic downfeed system
  • Heavy Duty 14-gauge steel stand with shelf has been redesigned for stability, rigidity and ease of use.
  • Wheels and handle for easy movement

    • Show All

    Specifications

    ManufacturerJettools
    ModelJ-3230
    ConditionNew
    Stock NumberJT9-414453
    Blade Speeds (SFPM)85, 125, 200
    Blade Wheel Diameter (In.)7-1/2
    DriveBelt Drive
    Motor (HP)1/2 HP, 115V, 1Ph
    Overall Dimensions (L x W x H) (In.)37 x 16 x 37
    Prewired Voltage (V.)115
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)4-1/2 x 5
    Rectangle at 90 Degrees (In.)7-1/2 x 5
    Round at 45 Degrees (In.)4-1/2
    Round at 90 Degrees (In.)5
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight165.0
    Net weight160.0
