HBS-1018W, 10" x 18" Horizontal Bandsaw

or
Call (954)444-4004

Description

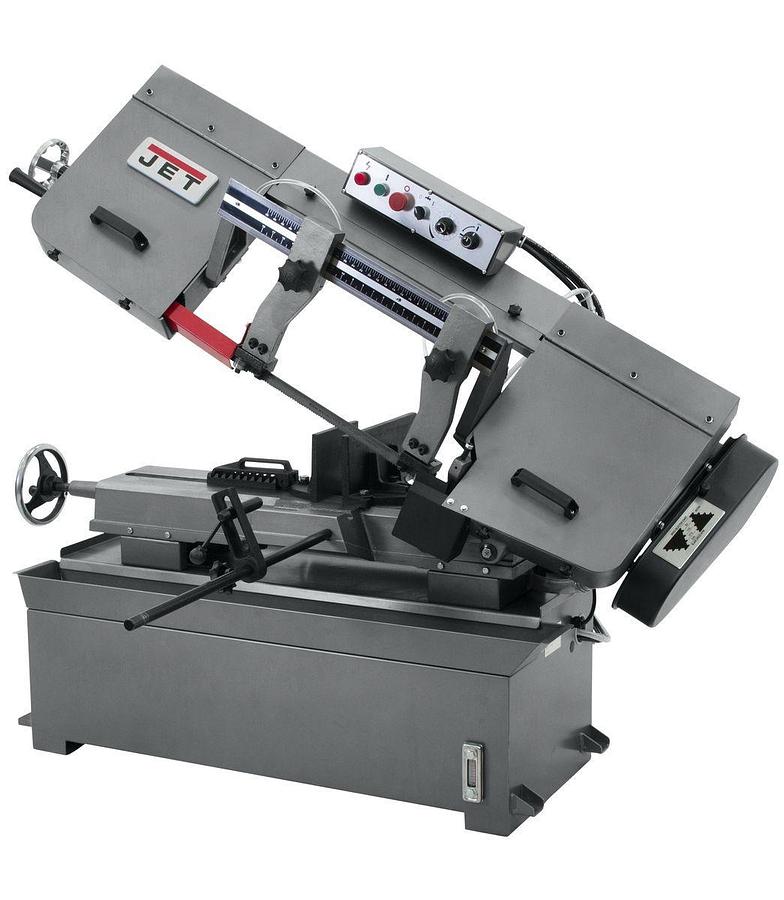

HBS-1018W, 10" x 18" Horizontal Bandsaw 230V 1Ph

Set on a heavy-duty machined tabled bed to eliminate vibration, the JET 10" x 18" Horizontal Bandsaw delivers a precision cut time after time. Multiple operational features make this a highly desired piece of machinery for any shop.


  • Adjustable Material Stop
  • Blade guides feature parallel double-row ball bearing support
  • Built-in, self-propelled blade brush extends blade life
  • Carbide blade guides feature parallel double-row ball bearing support
  • Coolant is distributed through the blade guides
  • Fully adjustable hydraulic downfeed with separate on/off control valve
  • Large hand wheel and built-in gauge provides easy blade tensioning
  • Proprietary oversized chip tray design minimizes over spray and reduces clean up
  • Quick-positioning vise with fully adjustable jaws

    • Show All

    Specifications

    ManufacturerJettools
    ModelHBS-1018W
    ConditionNew
    Stock NumberJT9-414473
    Amperage13A
    Bed Height (In.)23.5
    Blade Speed (SFPM)82, 132, 210, 330
    Blade Speeds (SFPM)82, 132, 210, 330
    Blade Wheel Diameter (In.)14
    Cutting Capacity (W x D) (In.)10 x 18
    DriveBelt Drive
    Motor (HP)2 HP, 230V Only, 1Ph
    Overall Dimensions (L x W x H) (In.)69 x 28 x 42-3/4
    Prewired Voltage (V.)230
    Prop 65Cancer and Reproductive Harm
    Rectangle at 45 Degrees (In.)10 x 7-1/2
    Rectangle at 90 Degrees (In.)10 x 16 and 6-1/2 x 18
    Round at 45 Degrees (In.)7-1/2
    Round at 90 Degrees (In.)10
    Vise Swivels (Deg.)45°
    Warranty2 Year
    Gross Weight906.0
    Net weight864.0
